Powersafe Lug Converters 500Amp Line Source Earth Green 22-32mm M40B
Our No: 9736
Manufacturer No: SLCS001
| Units | % | Price per unit |
|---|---|---|
| 2 | 5% | £49.30 |
£51.89
£62.27 (inc VAT)

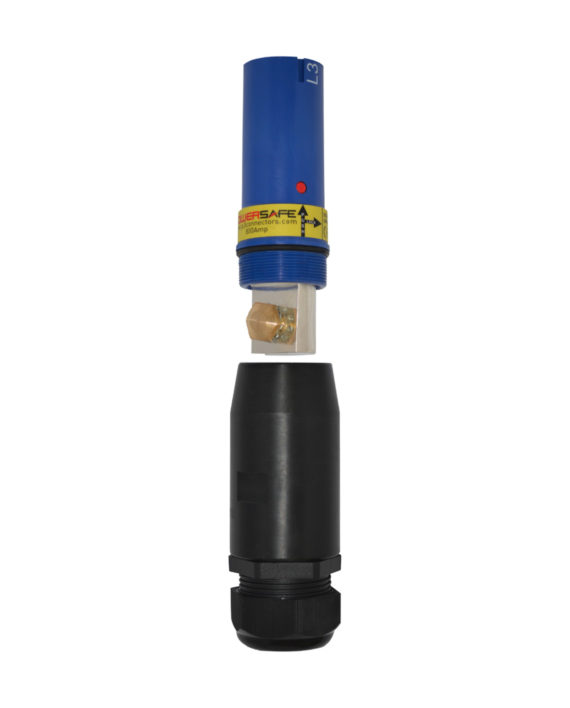

M40B Powersafe Lug Converters 500Amp Line Source Earth 22-32mm M40B Lug Connection, Max 150mm Cable
This device allows a standard cable lug to be temporarily or permanently terminated to a Powersafe connector.
The cable lug is simply bolted to the Powersafe electrical contact and the connector assembled as normal.
The Converters come in 2 x sizes, suitable for cable lugs with M12 through holes for cable sections of 25- 150mm and 185-300mm2 cables. (300mm2 requires a contained palm lug).
Key Features include:
- Facilitates standard cable crimp lugs
- IP67 when mated
- Up to 500Amp operation ( 800Amp Available )
- No special tools required.
For Use with 150mm2 cables
- Lugs can be quickly terminated to the connector.
- Suitable as temporary or permanent connection.
- No adaptors so insulator mechanical and electrical properties are maintained.
Contact us for more details on these and the other Network Connectors available from Phase 3 Connectors
