Powersafe Lug Converters 800Amp Line Source Full Set 30-38mm M50

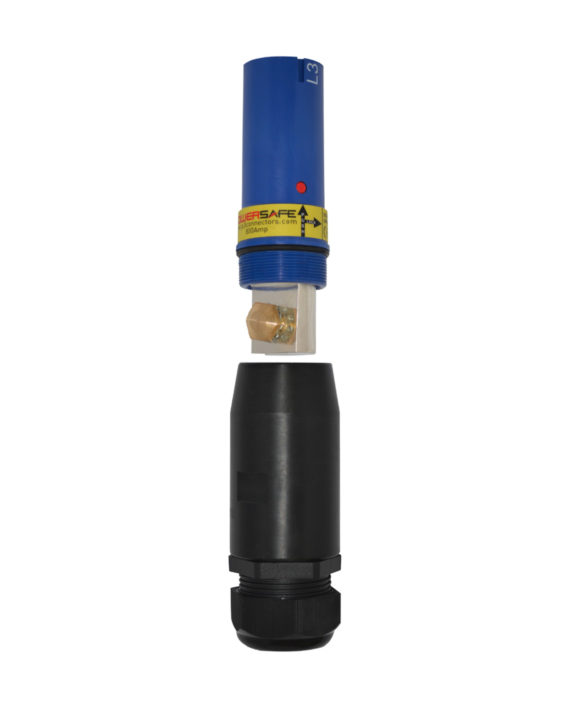

This device allows a standard cable lug to be temporarily or permanently terminated to a Powersafe connector.
The cable lug is simply bolted to the Powersafe electrical contact and the connector assembled as normal.
The Converters come in 2 x sizes, suitable for cable lugs with M12 through holes for cable sections of 25- 150mm and 185-300mm2 cables. (300mm2 requires a contained palm lug).



Key Features include:

• Facilitates standard cable crimp lugs
• IP67 when mated
• Up to 800Amp operation ( 500Amp Available )
• No special tools required.
• 30-38mm Clamping Range M50

For Use with 300mm2 cables

• Lugs can be quickly terminated to the connector.
• Suitable as temporary or permanent connection.
• No adaptors so insulator mechanical and electrical properties are maintained.

Contact us for more details on these and the other Network Connectors available from Phase 3 Connectors
