Powersafe Powerlock 800Amp Connector Line Drain 240 mm2 M50 L2 Orange USA HV
Our No: 10711
Manufacturer No: SLD0446 SLD-2-OR-C240-M50
| Units | % | Price per unit |
|---|---|---|
| 2 | 5% | £63.60 |
£66.95
£80.34 (inc VAT)
Powersafe Powerlock 800Amp Connector Line Drain 240 mm2 M50 L2 Orange USA HV
Powersafe Powerlock connectors are used within the, Construction, Marine, Rail, Military, Film, TV, Stage Events environments & industries worldwide.
Powersafe Earth inline connectors easily terminate to copper cable using either industry standard crimp tools or set-screw contacts. Secure coupling of the three phase plugs and sockets is achieved through an innovative mechanical locking system that disengages with a simple release key.
Please note, if you require Powersafe connectors for power cable less than Set Screw 120mm2, i.e. 95mm2, 70mm2, 50mm2, 35mm2, 25mm2, you must purchase a reducer kit separately. See our part codes 8350 + 8349 in the accessories section.
Benefits of Powersafe Inline Connectors
- Mechanically Keyed to eliminate the possibility of cross mating
- Secondary Locking prevent unintentional uncoupling under load
- Finger-proof protection against electric shock IP2X
- Waterproof & Dustproof to IP67 rated

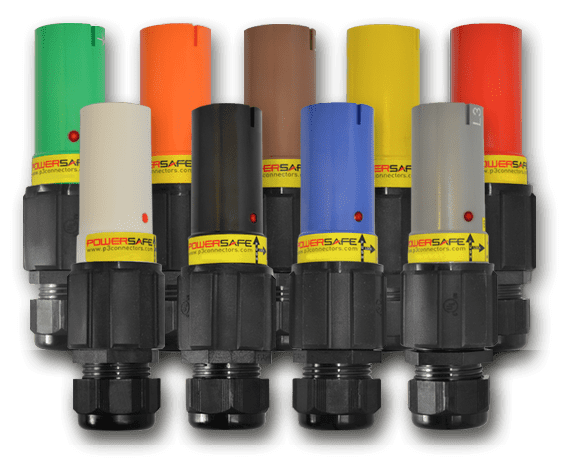

- Colour Coded for easy identification
- Innovative contact band allows higher rating (400A > 500A, 660A > 800A)
- Contact band cannot come out
- High Impact Insulator (no glass used & flame retardant)
- Field Installation no special tools required
- Integral Cable Strain Relief
- Daisy Chain Capability facilitates flexible stock cable lengths
- Large Cable Range 25mm² - 300mm²
- Amperage & Cable Size Explained
- When selecting your inline connectors, it's the cable size, cross-sectional area (CSA termination), that determines which connectors are required. Powersafe Powerlock connectors are available with either Set Screw termination for cables up to 120mm2 and with Crimped termination for cable sizes between 150mm2 & 300mm2
Brand:
Powersafe
Type:
In-Line Drain Cable Connectors
Amperage:
800A
Gender:
Drain
Line:
L2
Colour Group:
HV
Termination (Cable):
240mm Crimp Termination
Clamping Range:
30-38mm Clamping Range
Gland Type:
M50
Powerlock Colour:
Orange (HV)
