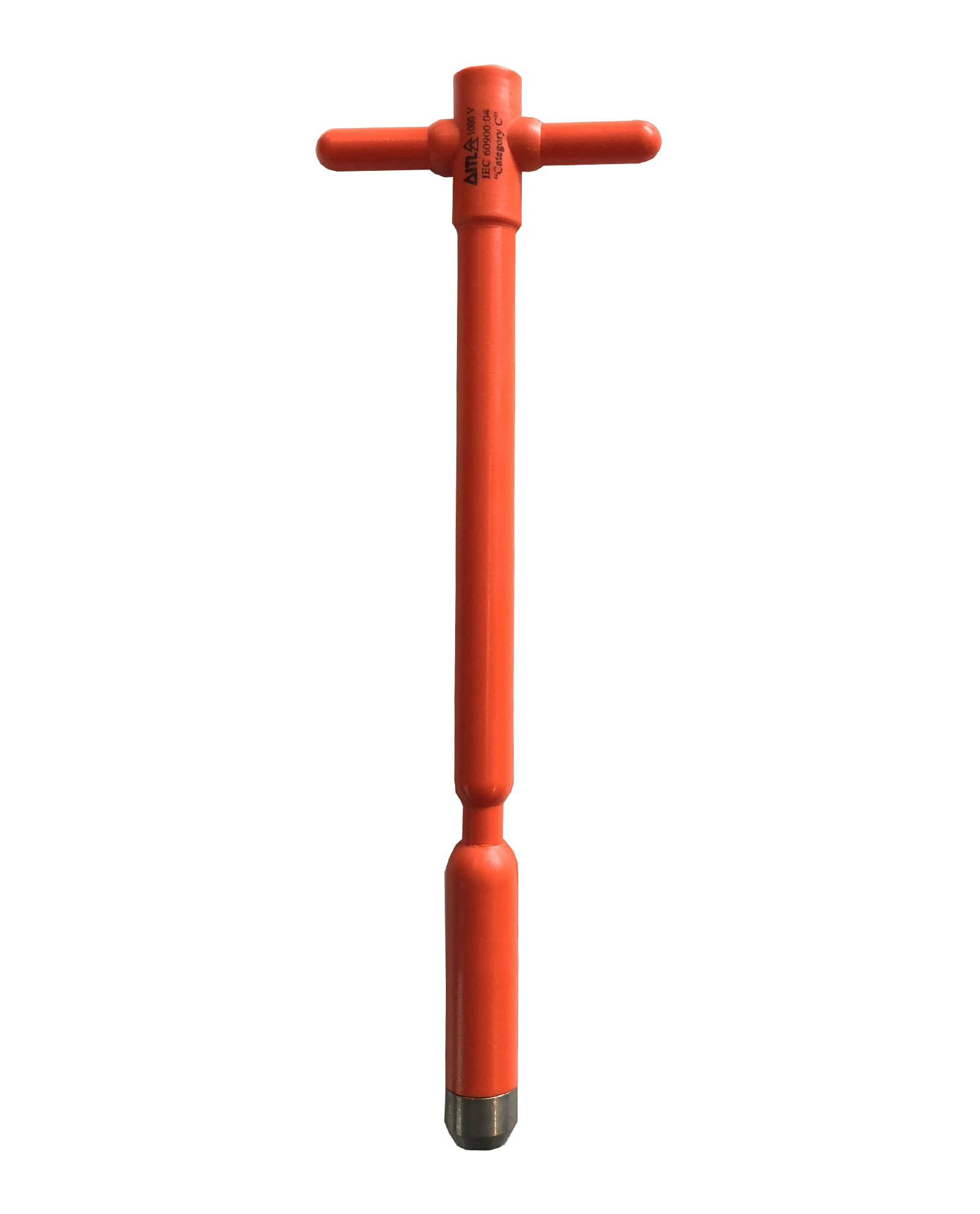

Powersafe Short Tool for use with Insulated G-Clamps

Powersafe Network insulated Tools:Hand Tools for the range of Network Connectors



Other options

AP00028 – Long Tool for the G Clamps
AP000051 – Horizontal Clamp Tool


Phase 3’s Powersafe Network Connection Devices are the choice of electrical utility and temporary power companies across the globe. Their innovative range of cable clamps and power connectors are specifically designed to allow the connection of temporary mobile generators direct to various equipment within the electricity network.

The Powersafe Network Connection Device range has a number of insulated clamps and converters to pair with our Powersafe Connectors. You can customise your devices with our easy three step assembly, choosing between a choice of heads, arms and phases.


Powersafe Insulated G-Clamp enables power professionals to connect directly to a low voltage busbar. The fully insulated clamp is tightened onto the busbar with an insulated box spanner which meets the requirements of IEC 60900 (live working hand tools for use up to 1000Vac / 1500Vdc). A Powersafe connector (can be source or drain) is incorporated into the clamp to allow direct connection to the generator power cable. The electrical G-Clamp is rated at 800A continuous rating. The Powersafe connectors on the G-Clamp are colour coded and mechanically keyed to distinguish between phases and prevent connection errors. The head of the G-Clamp is 45mm wide.
