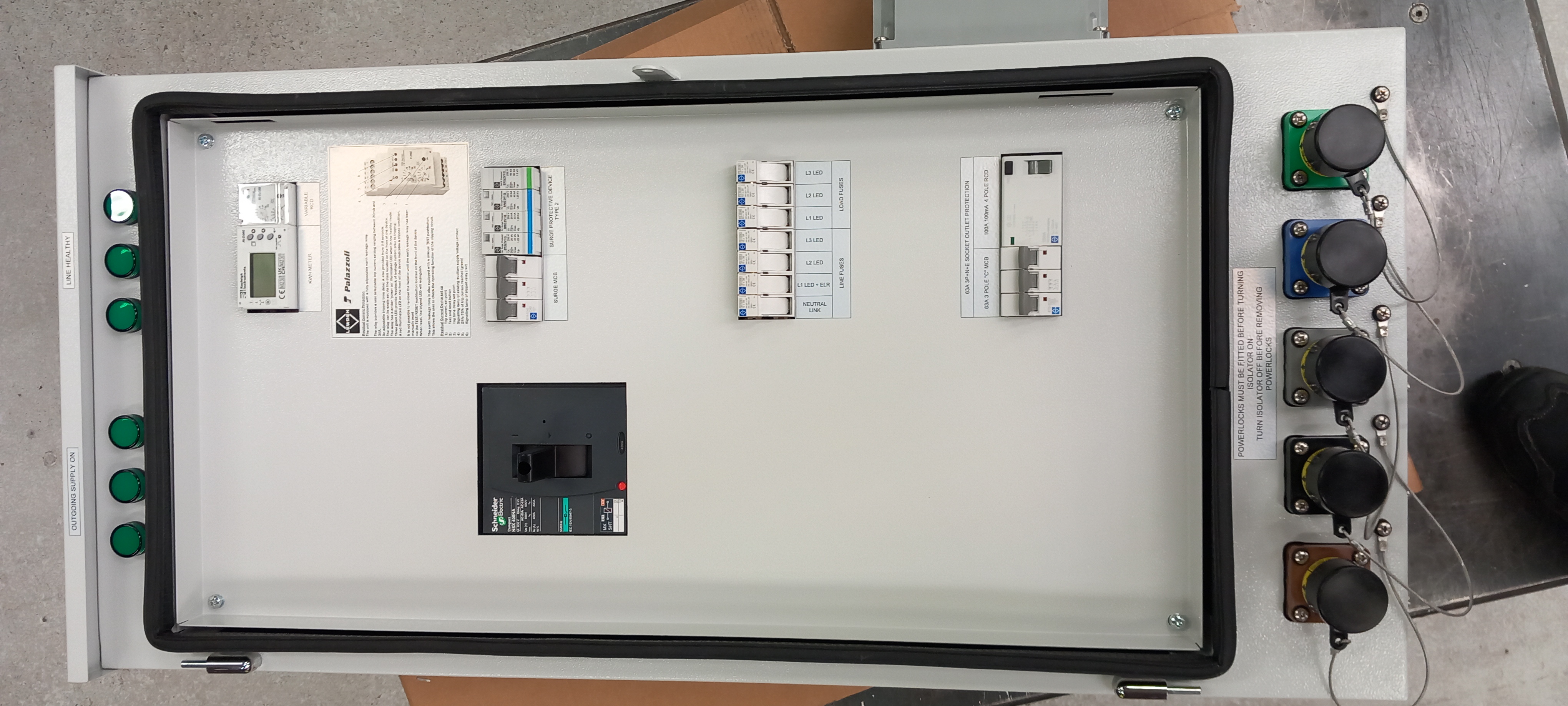

Powerlock Wall Box Panel Drain L1 L2 L3 N-Blue E-Green Power-In Connection Box 250A

Configured to order, Zintec steel enclosure IP55, suitable for wall mounting.
Arranged with a pad lockable front access door, internal shielding panel, wall fixing lugs, and un-drilled bottom entry gland plate
Finished in texture powder coat light grey
Overall dimensions approx. 767H x 450W x 250D (mm)

Equipped with
1x Schneider Electric 250A 4P non-automatic switch disconnector, arranged with live side terminal shroud, and integral shunt release
1x Contrel ELRC1/60 adjustable time / current earth leakage relay
1x Rayleigh Instruments RID460 3P4W multi-function meter, with 400A / 330mV current transformer (measuring: volts / amps / kwh / kvar / pf / frequency / max demand)
1x Set of 5, colour coded (BR/ BK /GY /BL /GN) single pole panel source power lock connectors 500A. Mounted to lower part of the enclosure
1x Set of 3 fuses 1A (for meter voltage input and ELRC auxiliary supply)
1 x Set of LED indicator for load and line
1x Lewden SRG3V1G type 2 surge protection device, with 63A 3P type C 10kA MCB

Generator Connection Points can be fitted inside or outside of a building, The Generator Connection Box is designed to allow the connection of a generator to restore power to critical applications such as hospitals, universities, offices, airports, banks, and many other commercial facilities.

The unit would be supplied fully assembled, wired, and tested
