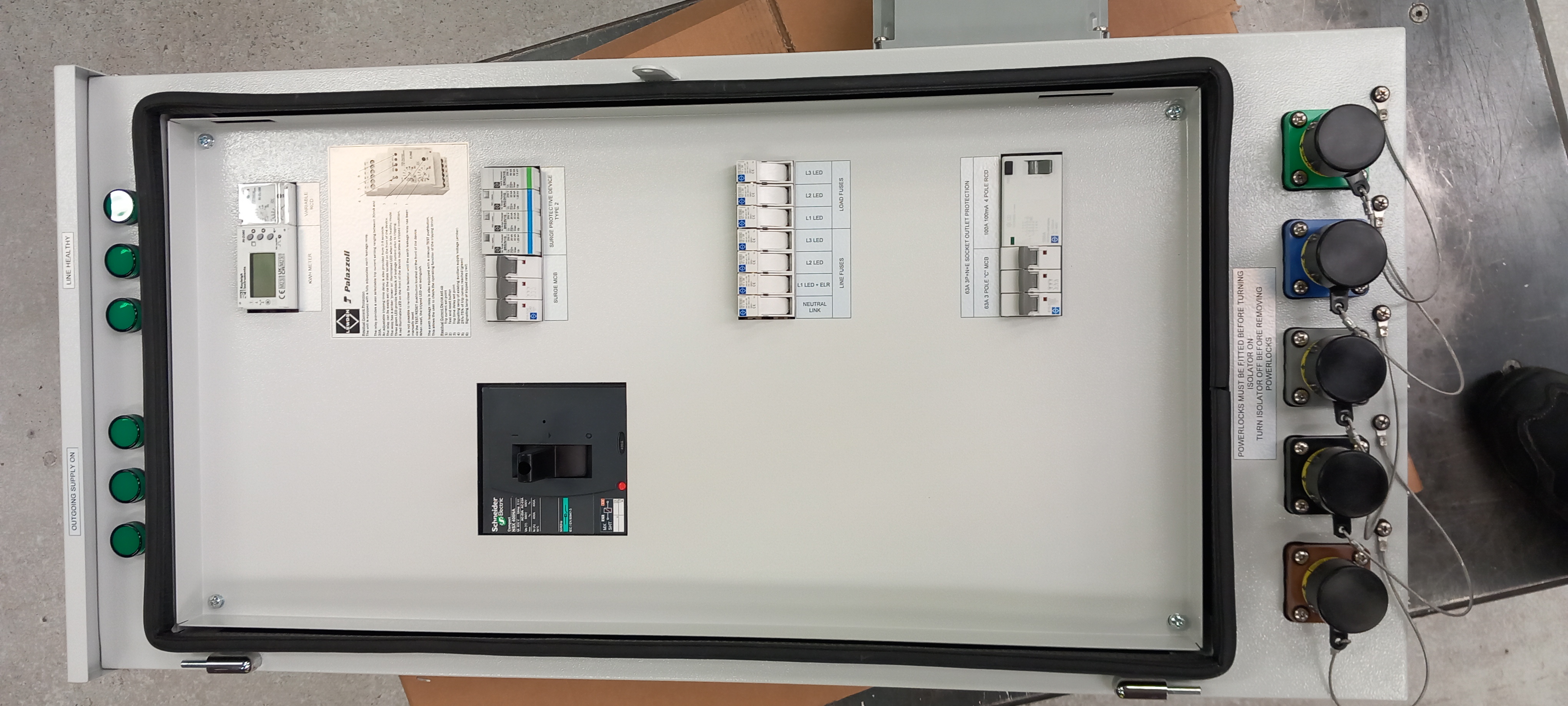

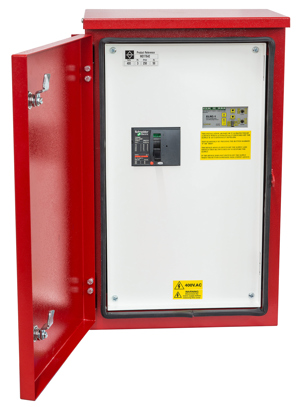

Powerlock Wall Box Panel Source L1 L2 L3 N-Blue E-Green with Earth Leakage Protection. 630A 4P ELRC1

Configured to order, Zintec steel enclosure IP55, suitable for wall mounting.
Arranged with a pad lockable front access door, internal shielding panel, wall fixing lugs, and un-drilled bottom entry gland plate
Finished in texture powder coat light grey
Overall dimensions approx. 1100H x 600W x 250D (mm) TBC

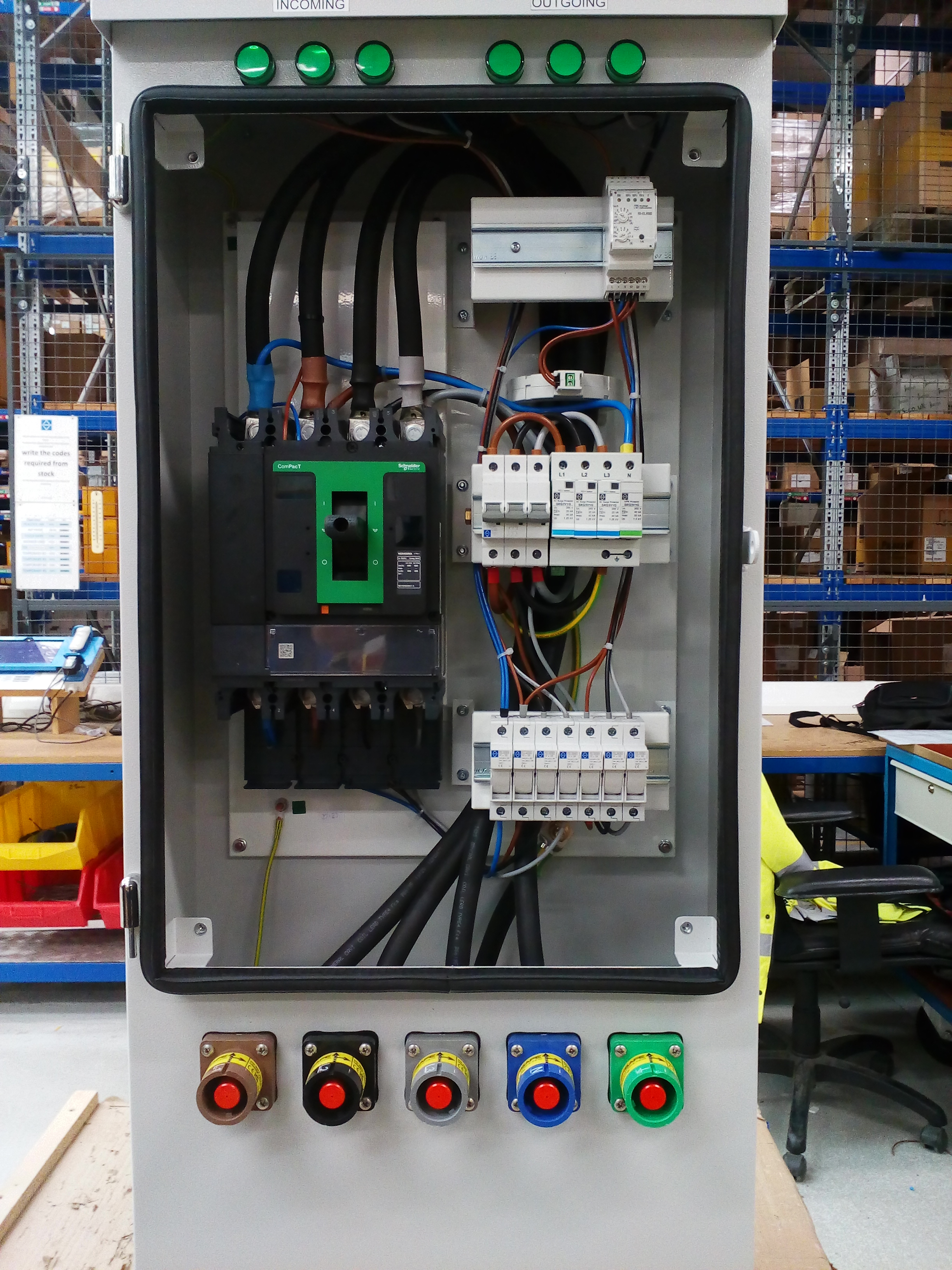

Equipped with
1x Schneider Electric 630A 4P non-automatic switch disconnector (no overload protection), arranged with live side terminal shroud and 70mm spreader kit to allow two terminals per pole as attached, and integral shunt release
1x Contrel ELRC1/60 adjustable time / current earth leakage relay
1x Rayleigh Instruments RID460 3P4W multi-function meter, with 400A / 330mV current transformer (measuring: volts / amps / kwh / kvar / pf / frequency / max demand)
1x Set of 5, colour coded (BR/ BK /GY /BL /GN) single pole panel source power lock connectors 500A. Mounted to lower part of the enclosure
1x Set of 3 fuses 1A (for meter voltage input and ELRC auxiliary supply)
1 x Set of LED indicator for load and line
1x Lewden SRG3V1G type 2 surge protection device, with 63A 3P type C 10kA MCB

The unit would be supplied fully assembled, wired, and tested. Although the isolator is rated to 630A as it jumps from 400A this would still be rated to 500A due to the Powerlock source connectors.



Note that if a separate locking cover is required for the RCD, then we can incorporate a padlock hasp to the white internal shield plate (The ELRC relay has a transparent cover that allows for test / reset but not setting adjustment without prior removal. The transparent cover sits behind the white shield plate)

Supports standard ITT Veam Powerlock (Powersafe) Connectors

The box utilises standard Powersafe Connectors in either drain or source. The power distribution box has mechanically keyed ports to ensure correct phase connection, the ports are lockable to prevent accidental disconnects and colour coded to suit international wiring colour standards.
