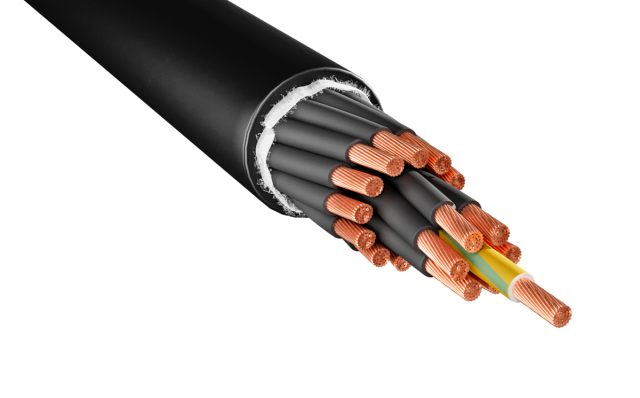

SYNTAX Socapex Cable 18-wire Power Multicore Cable PVC x 100 Metre 2.5mm

Flexible and easy to handle. Socapex 19 pin compatible professional cables for industrial applications, field equipment, emergency lighting for public areas, audio and video technology. The best choice when winding operations are intensive.

SYNTAX Socapex Cable 18-wire 2.5mm Power Multicore cable PVC x 100 Metre

• This 18-wire Power Multicore cable is a more compact version of the 7ZF1925E 19-wire model, intended for usage on those applications where the 19th yellow/green wire is not used.
• The advantages are a slimmer cable for easier handling, excellent flexibility and less total weight.
• The particular distribution of the inner cables and the material used for the external jacket allow a long cable lifespan even in case of  frequent winding and unwinding cycles typical of mobile usage.
• The PVC black jacket comply with CEI 20-22/III - IEC 60332-3-24 - EN 50266-2-4 fire resistant regulations, diameter 19,5mm.

For the very best pricing, call for an official quotation.

Resistance of conductors: IEC 60344
Operating Voltage: 300/500 V
Insulation resistance: > 200 MΩ/Km
Conductors jacket: Black PVC individually  numbered
Outer Jacket: PVC Black Ø= 19,5mm
Temperature range: -30°C +70°C
Standards: CEI 20-22/III - IEC 60332-3-24 - EN 50266-2-4
