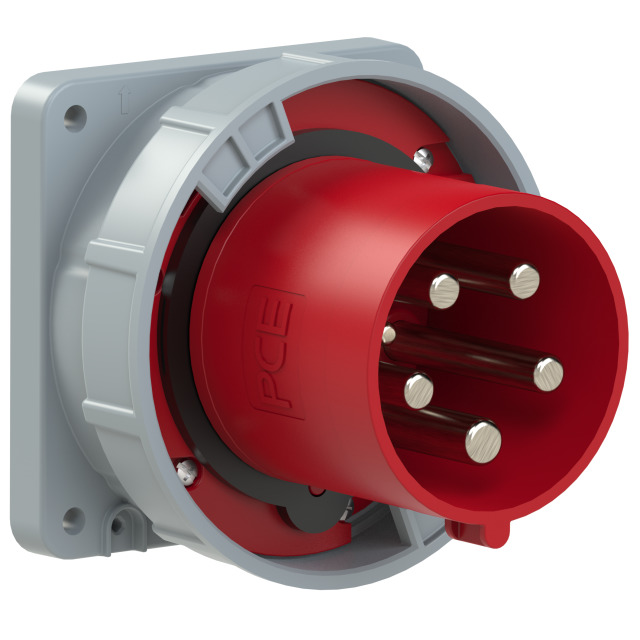

PCE Panel Mount Appliance Inlet 63A 415V 3P+N+E IP67 635-6
Our No: 1378
Manufacturer No: 635-6
| Units | % | Price per unit |
|---|---|---|
| 2 | 5% | £46.54 |
| 4 | 10% | £44.09 |
| 6 | 12.5% | £42.87 |
£48.99
£58.79 (inc VAT)
CEE-flanged plug straight 63A 5p 6h IP67 POWER TWIST
CEE-flanged plug straight 63A 5p 6h IP67 POWER TWIST
housing material: PA6
rated current: 63A
number of poles: 5 (3P+N+PE)
clock-position: 6h
rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
contacts: brass nickel plated, with pilot pin
connection technology: frame terminals with screws
dimensions (flange/fixing center): 100x100 mm / 80x80 mm
IP protection class: IP66/IP67
Brand:
PCE
Type:
Panel Mount Appliance Inlets
Amperage:
63A
Pin Configuration:
3P+N+E (5 Pin)
Voltage:
415V
Colour:
Red
IP Rating:
IP67
Pin Position (Clock):
6H
Incoming Amperage:
63A
Current Rating Range:
63A
Connector Colour:
Red
