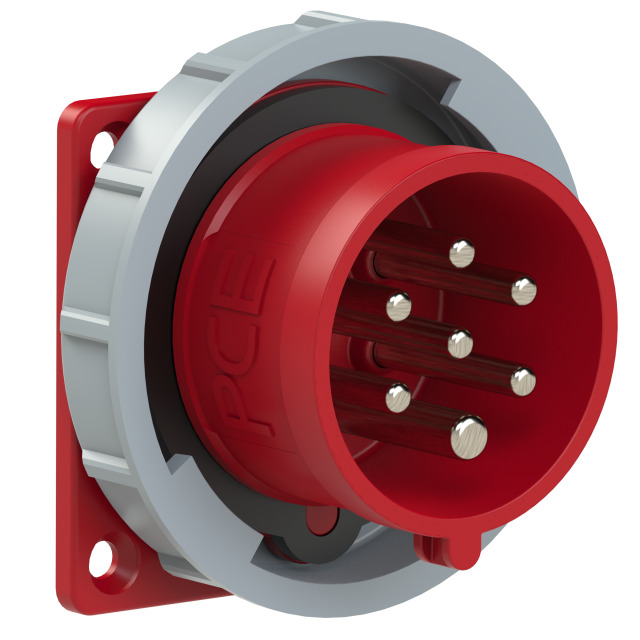

PCE Straight Panel Mount Appliance Inlet 16A 400V (6P+PE) IP67 6172-6v
Our No: 10936
Manufacturer No: 6172-6v
| Units | % | Price per unit |
|---|---|---|
| 10 | 10% | £22.55 |
£25.06
£30.07 (inc VAT)
CEE-flanged plug straight (75x75mm) 16A 7p 6h IP66/IP67
CEE-flanged plug straight (75x75mm) 16A 7p 6h IP66/IP67
housing material: PA6
rated current: 16A
number of poles: 7 (6P+PE)
clock-position: 6h
rated voltage/frequency: 380-415V~ / 50+60Hz
contacts: brass nickel plated
connection technology: screw terminals
dimensions (flange/fixing center): 75x75 mm / 60x60 mm
IP protection class: IP66/IP67
Brand:
PCE
Type:
Panel Mount Appliance Inlets
Amperage:
16A
Pin Configuration:
6P+E (7 Pin)
Voltage:
415V
Colour:
Red
IP Rating:
IP67
Pin Position (Clock):
6H
Incoming Amperage:
16A
Current Rating Range:
16A
Connector Colour:
Red
