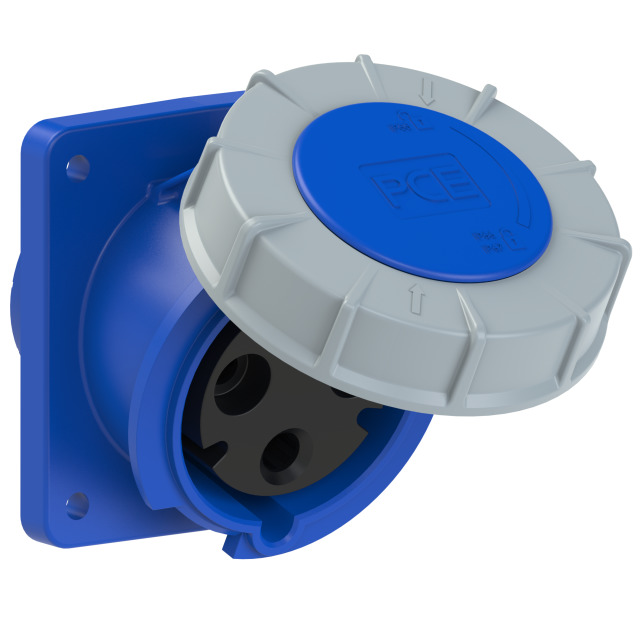

PCE Angled Panel Mount Socket 63A 230V 2P+E IP67 4335-6
Our No: 1604
Manufacturer No: 4335-6
| Units | % | Price per unit |
|---|---|---|
| 2 | 5% | £31.23 |
| 4 | 10% | £29.58 |
£32.87
£39.44 (inc VAT)
CEE-flanged socket sloping (100x112) 63A 3p 6h IP67 POWER TWIST
CEE-flanged socket sloping (100x112) 63A 3p 6h IP67 POWER TWIST
housing material: PA6
rated current: 63A
number of poles: 3 (2P+PE)
clock-position: 6h
rated voltage/frequency: 200-250V~ / 50+60Hz
contacts: brass, with lamellar spring (CuBe)
connection technology: frame terminals with screws
dimensions (flange/fixing center): 100x112 mm / 80x88 mm
IP protection class: IP66/IP67
Brand:
PCE
Type:
Panel Mount Sockets
Amperage:
63A
Pin Configuration:
2P+E (3 Pin)
Voltage:
230V
Colour:
Blue
IP Rating:
IP67
Pin Position (Clock):
6H
Mounting Style:
Angled
Incoming Amperage:
63A
Current Rating Range:
63A
Connector Colour:
Blue
