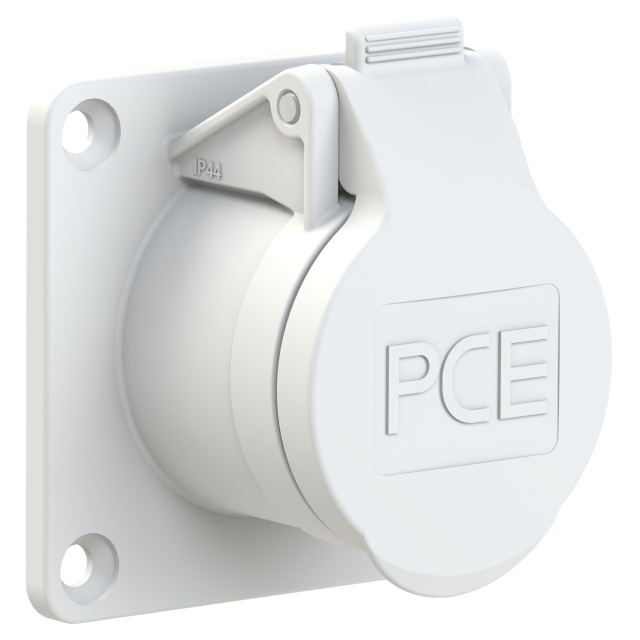

PCE Extra Low Voltage Flanged Socket Straight 16A 3P 24/42V (White) DC 383-10v
Our No: 8668
Manufacturer No: 383-10v
| Units | % | Price per unit |
|---|---|---|
| 10 | 10% | £10.68 |
£11.87
£14.24 (inc VAT)
CEE-flanged socket straight 70x70mm 16A 3p 24/42VDC IP44/IP54 TWIST
CEE-flanged socket straight 70x70mm 16A 3p 24/42VDC IP44/IP54 TWIST
housing material: PA6
rated current: 16A
number of poles: 3 (3P)
clock-position: 10h
rated voltage/frequency: 24/42V DC
contacts: brass nickel plated
connection technology: screw terminals
dimensions (flange/fixing center): 70x70 mm / 56x56 mm
IP protection class: IP44/IP54
Brand:
PCE
Type:
Panel Mount Sockets
Amperage:
16A
Pin Configuration:
2P+E (3 Pin)
Voltage:
24/42V
Colour:
White
IP Rating:
IP44
Pin Position (Clock):
10H
Incoming Amperage:
16A
Current Rating Range:
16A
