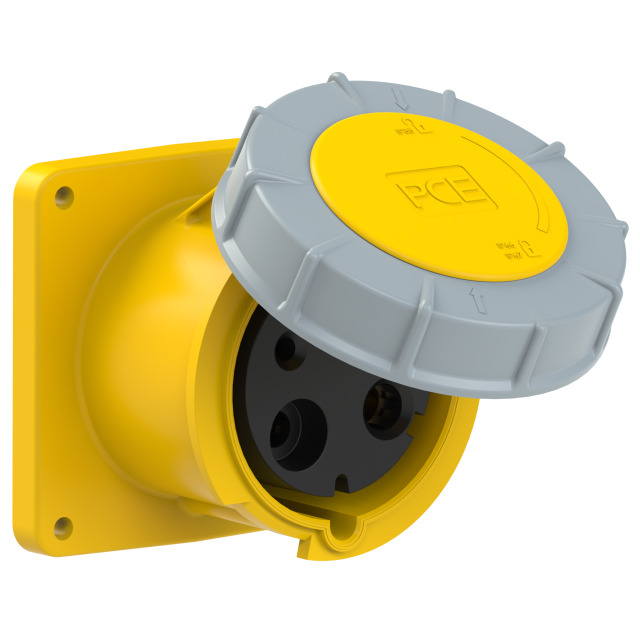

PCE Straight Flush Mount Panel Socket 125A 110V 2P+E IP67 3435-4
Our No: 10229
Manufacturer No: 3435-4
| Units | % | Price per unit |
|---|---|---|
| 2 | 5% | £87.35 |
| 4 | 10% | £82.76 |
£91.95
£110.34 (inc VAT)
CEE-flanged socket straight (120x120) 125A 3p 4h IP67 POWER TWIST
CEE-flanged socket straight (120x120) 125A 3p 4h IP67 POWER TWIST
housing material: PA6
rated current: 125A
number of poles: 3 (2P+PE)
clock-position: 4h
rated voltage/frequency: 100-130V~ / 50+60Hz
contacts: brass, with lamellar spring (CuBe)
connection technology: frame terminals with screws
dimensions (flange/fixing center): 120x120 mm / 100x100 mm
IP protection class: IP66/IP67
Brand:
PCE
Type:
Panel Mount Sockets
Amperage:
125A
Pin Configuration:
2P+E (3 Pin)
Voltage:
110V
Colour:
Yellow
IP Rating:
IP67
Pin Position (Clock):
4H
Incoming Amperage:
125A
Current Rating Range:
125A
