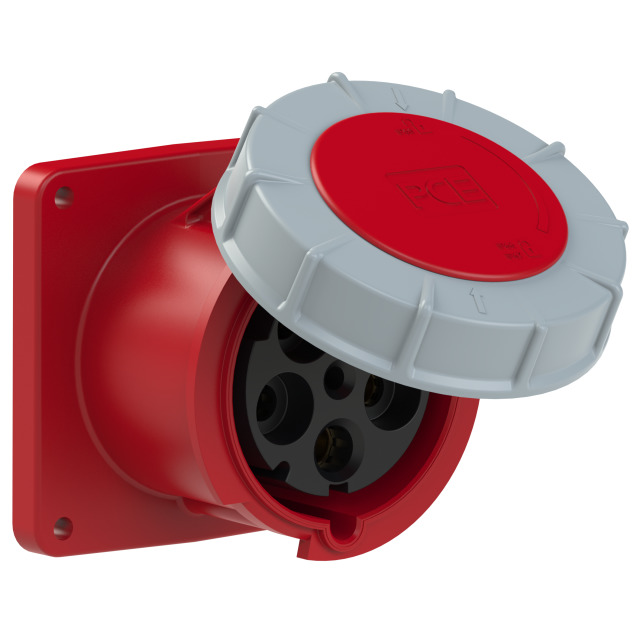

PCE Straight Flush Mount Panel Socket 125A 400V 3P+N+E IP67 3455-6
Our No: 1440
Manufacturer No: 3455-6
| Units | % | Price per unit |
|---|---|---|
| 2 | 5% | £84.55 |
| 4 | 10% | £80.10 |
| 6 | 12.5% | £77.88 |
£89.00
£106.80 (inc VAT)
CEE-flanged socket straight (120x120) 125A 5p 6h IP67 POWER TWIST
CEE-flanged socket straight (120x120) 125A 5p 6h IP67 POWER TWIST
housing material: PA6
rated current: 125A
number of poles: 5 (3P+N+PE)
clock-position: 6h
rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
contacts: brass, with lamellar spring (CuBe)
connection technology: frame terminals with screws
dimensions (flange/fixing center): 120x120 mm / 100x100 mm
IP protection class: IP66/IP67
Brand:
PCE
Type:
Panel Mount Sockets
Amperage:
125A
Pin Configuration:
3P+N+E (5 Pin)
Voltage:
415V
Colour:
Red
IP Rating:
IP67
Pin Position (Clock):
6H
Incoming Amperage:
125A
Current Rating Range:
125A
Connector Colour:
Red
