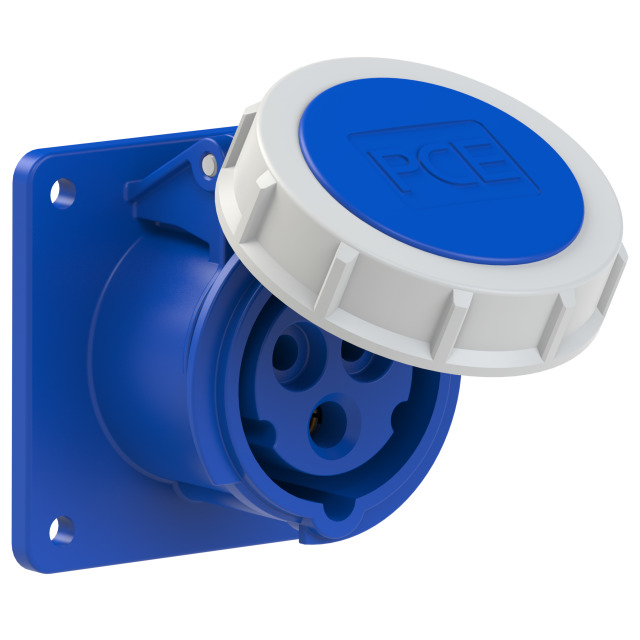

PCE Straight Flush Mount Panel Socket 16A 230V 2P+E IP67 3132-6
Our No: 1611
Manufacturer No: 3132-6
| Units | % | Price per unit |
|---|---|---|
| 10 | 10% | £12.73 |
| 20 | 15% | £12.02 |
£14.14
£16.97 (inc VAT)
CEE-flanged socket straight (75x75mm) 16A 3p 6h IP67
CEE-flanged socket straight (75x75mm) 16A 3p 6h IP67
housing material: PA6
rated current: 16A
number of poles: 3 (2P+PE)
clock-position: 6h
rated voltage/frequency: 200-250V~ / 50+60Hz
contacts: brass
connection technology: screw terminals
dimensions (flange/fixing center): 75x75 mm / 60x60 mm
IP protection class: IP67
Brand:
PCE
Type:
Panel Mount Sockets
Amperage:
16A
Pin Configuration:
2P+E (3 Pin)
Voltage:
230V
Colour:
Blue
IP Rating:
IP67
Pin Position (Clock):
6H
Incoming Amperage:
16A
Current Rating Range:
16A
Connector Colour:
Blue
