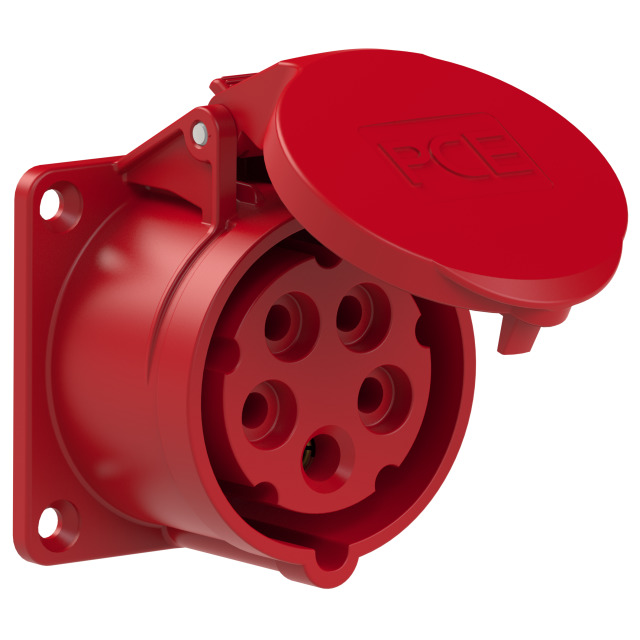

PCE Straight Flush Mount Panel Socket 16A 400V 3P+N+E IP44 315-6
Our No: 1444
Manufacturer No: 315-6
| Units | % | Price per unit |
|---|---|---|
| 10 | 10% | £7.18 |
| 20 | 12.5% | £6.98 |
£7.98
£9.58 (inc VAT)
- Flanged socket straight.
- With screw terminals
- Flange 70 x 70mm
- Fixing Centre 56 x 56mm
- Housing material PA6 IP44
| Ampere | Pole | ||||||
|---|---|---|---|---|---|---|---|
| 16 | 3 | 313-4 | 313-6 | 313-9 | 313-7 | 313-10 | 313-2 |
| 16 | 4 | 314-4 | 314-9 | 314-6 | 314-7 | 314-10 | 314-2 |
| 16 | 5 | 315-4 | 315-9 | 315-6 | 315-7 | 315-10 | 315-2 |
| 32 | 3 | 323-4 | 323-6 | 323-9 | 323-7 | 323-10 | 323-2 |
| 32 | 4 | 324-4 | 324-9 | 324-6 | 324-7 | 324-10 | 324-2 |
| 32 | 5 | 325-4 | 325-9 | 325-6 | 325-7 | 325-10 | 325-2 |
Brand:
PCE
Type:
Panel Mount Sockets
Amperage:
16A
Pin Configuration:
3P+N+E (5 Pin)
Voltage:
415V
Colour:
Red
IP Rating:
IP44
Pin Position (Clock):
6H
Incoming Amperage:
16A
Current Rating Range:
16A
Connector Colour:
Red
