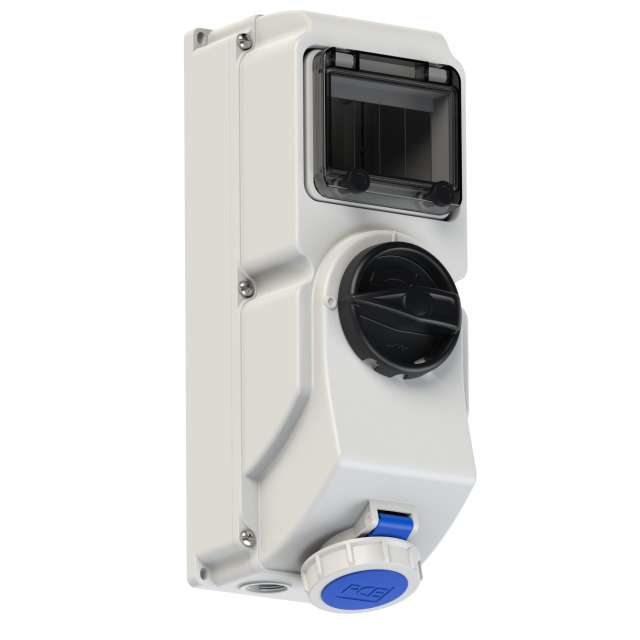

PCE Switched Interlocked Socket 16A 2P+E 230V IP67 76132-6
Our No: 8319
Manufacturer No: 76132-6
| Units | % | Price per unit |
|---|---|---|
| 2 | 5% | £103.11 |
| 5 | 10% | £97.69 |
£108.54
£130.25 (inc VAT)
CEE-switched interlocked socket DIN 16A 3p 6h IP66/IP67
CEE-switched interlocked socket DIN 16A 3p 6h IP66/IP67
housing material: PC/ABS
rated current: 16A
number of poles: 3 (2P+PE)
clock-position: 6h
rated voltage/frequency: 200-250V~ / 50+60Hz
contacts: brass nickel plated
connection technology: screw terminals
wall mounting, mechanical interlock, hinged window (5 modules), DIN-rail
switch: ON/OFF PCE-Merz ML0; EN 60947-3; AC22A, 10kA
cable entry: top, bottom or rear (incl. threaded blind cap)
IP protection class: IP66/IP67
Brand:
PCE
Type:
Switched Interlocked Sockets
Amperage:
16A
Pin Configuration:
2P+E (3 Pin)
Voltage:
230V
Colour:
Blue
IP Rating:
IP67
Pin Position (Clock):
6H
Incoming Amperage:
16A
Current Rating Range:
16A
Connector Colour:
Blue
DIN-Rail / RCD:
DIN-Rail Only
