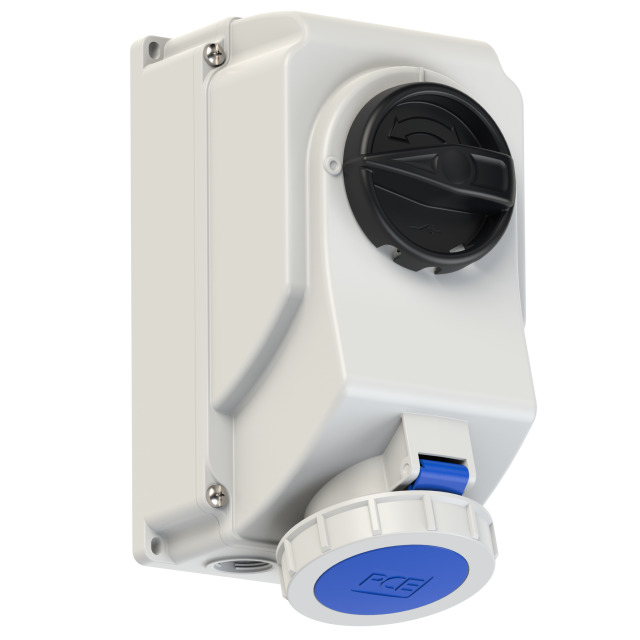

PCE Switched Interlocked Socket 32A 2P+E 230V IP67 75232-6
Our No: 2995
Manufacturer No: 75232-6
| Units | % | Price per unit |
|---|---|---|
| 2 | 5% | £89.58 |
| 5 | 10% | £84.86 |
£94.29
£113.15 (inc VAT)
CEE-switched interlocked socket 32A 3p 6h IP66/IP67
CEE-switched interlocked socket 32A 3p 6h IP66/IP67
housing material: PC/ABS
rated current: 32A
number of poles: 3 (2P+PE)
clock-position: 6h
rated voltage/frequency: 200-250V~ / 50+60Hz
contacts: brass nickel plated
connection technology: screw terminals
wall mounting, mechanical interlock
switch: ON/OFF PCE-Merz ML0; EN 60947-3; AC22A, 10kA
cable entry: top, bottom or rear (incl. threaded blind cap)
IP protection class: IP66/IP67
Brand:
PCE
Type:
Switched Interlocked Sockets
Amperage:
32A
Pin Configuration:
2P+E (3 Pin)
Voltage:
230V
Colour:
Blue
IP Rating:
IP67
Pin Position (Clock):
6H
Incoming Amperage:
32A
Current Rating Range:
32A
Connector Colour:
Blue
