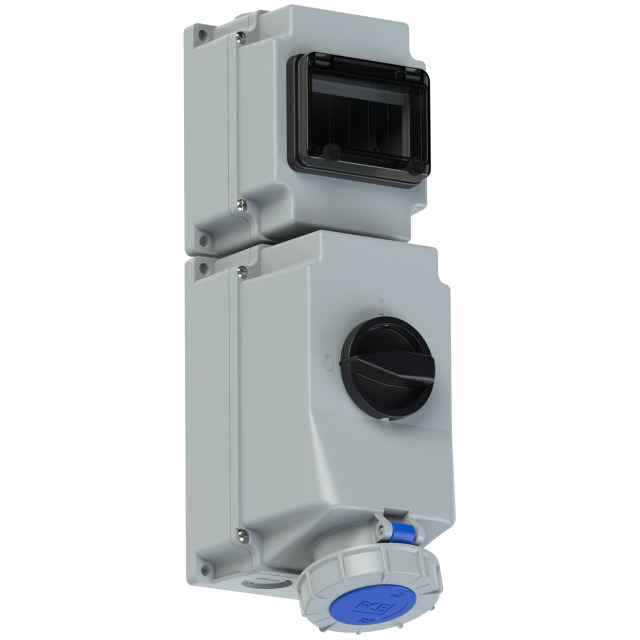

PCE Switched Interlocked Socket 63A 2+E 230V IP67 63A 763325-6
Our No: 5604
Manufacturer No: 763325-6
Volume Discounts
Units | % | Price per unit |
---|---|---|
2 | 10% | £166.56 |
£185.07
£222.08 (inc VAT)
CEE-switched interlocked socket DIN 63A 3p 6h IP66/IP67
CEE-switched interlocked socket DIN 63A 3p 6h IP66/IP67
housing material: PC/ABS
rated current: 63A
number of poles: 3 (2P+PE)
clock-position: 6h
rated voltage/frequency: 200-250V~ / 50+60Hz
contacts: brass, with lamellar spring (CuBe)
connection technology: screw terminals
wall mounting, mechanical interlock, hinged window (6 modules), DIN-rail
switch: ON/OFF PCE-Merz ML2-063; EN 60947-3; AC22A, 10kA
cable entry: top, bottom or rear (incl. threaded blind cap)
IP protection class: IP66/IP67
