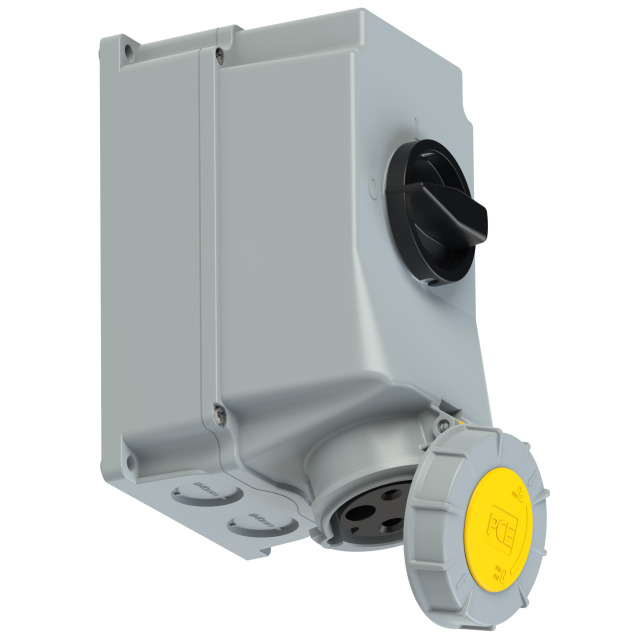

PCE Switched Interlocked Socket 63A 2P+E 110V IP67 753325-4
Our No: 8917
Manufacturer No: 753325-4
| Units | % | Price per unit |
|---|---|---|
| 2 | 10% | £167.08 |
£185.64
£222.77 (inc VAT)
CEE-switched interlocked socket 63A 3p 4h IP66/IP67
CEE-switched interlocked socket 63A 3p 4h IP66/IP67
housing material: PC/ABS
rated current: 63A
number of poles: 3 (2P+PE)
clock-position: 4h
rated voltage/frequency: 100-130V~ / 50+60Hz
contacts: brass, with lamellar spring (CuBe)
connection technology: screw terminals
wall mounting, mechanical interlock
switch: ON/OFF PCE-Merz ML2-063; EN 60947-3; AC22A, 10kA
cable entry: top, bottom or rear (incl. threaded blind cap)
IP protection class: IP66/IP67
Brand:
PCE
Type:
Switched Interlocked Sockets
Amperage:
63A
Pin Configuration:
2P+E (3 Pin)
Voltage:
110V
Colour:
Yellow
IP Rating:
IP67
Pin Position (Clock):
4H
Incoming Amperage:
63A
Current Rating Range:
63A
