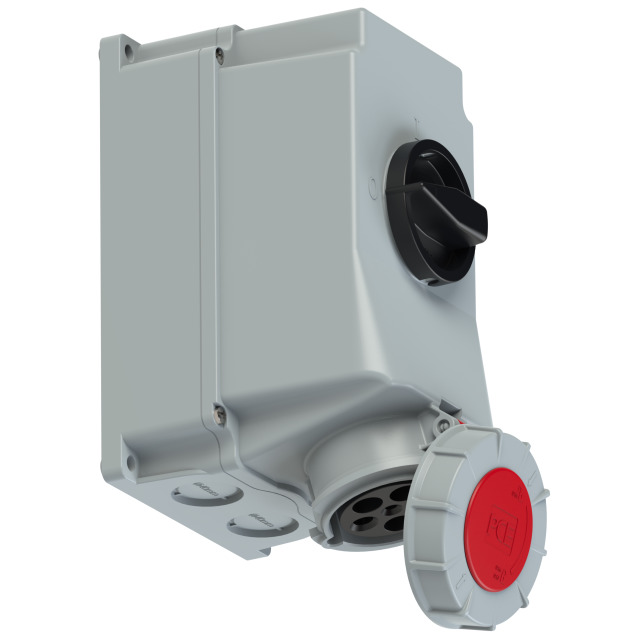

PCE Switched Interlocked Socket 63A 3P+N+E 400V IP67 753525-6
Our No: 1539
Manufacturer No: 753525-6
| Units | % | Price per unit |
|---|---|---|
| 2 | 10% | £180.86 |
£200.95
£241.14 (inc VAT)
CEE-switched interlocked socket 63A 5p 6h IP66/IP67
CEE-switched interlocked socket 63A 5p 6h IP66/IP67
housing material: PC/ABS
rated current: 63A
number of poles: 5 (3P+N+PE)
clock-position: 6h
rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
contacts: brass, with lamellar spring (CuBe)
connection technology: screw terminals
wall mounting, mechanical interlock
switch: ON/OFF PCE-Merz ML2-063; EN 60947-3; AC22A, 10kA
cable entry: top, bottom or rear (incl. threaded blind cap)
IP protection class: IP66/IP67
Brand:
PCE
Type:
Switched Interlocked Sockets
Amperage:
63A
Pin Configuration:
3P+N+E (5 Pin)
Voltage:
415V
Colour:
Red
IP Rating:
IP67
Pin Position (Clock):
6H
Incoming Amperage:
63A
Current Rating Range:
63A
Connector Colour:
Red
