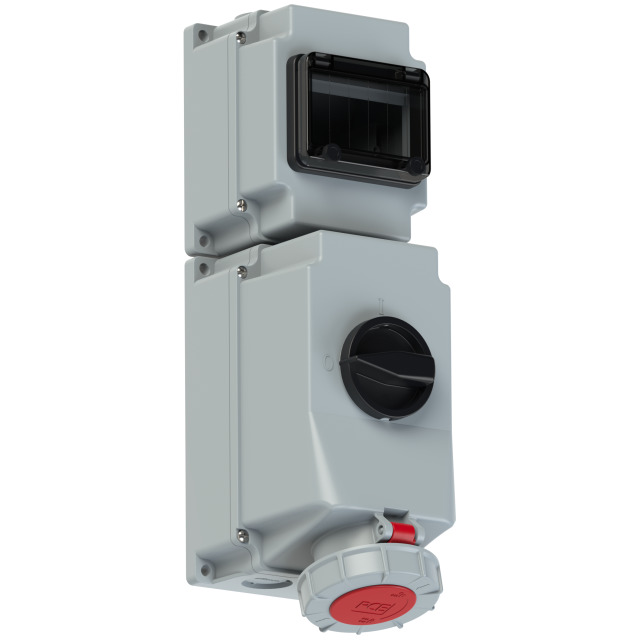

PCE Switched Interlocked Socket 63A 3P+N+E 400V IP67 763525-6

Our No: 1972
Manufacturer No: 763525-6
Stock Available: 3
2 to 3 days

Volume Discounts

Units % Price per unit
2 10% £222.08
£246.75
£296.10 (inc VAT)

CEE-switched interlocked socket DIN 63A 5p 6h IP66/IP67

CEE-switched interlocked socket DIN 63A 5p 6h IP66/IP67
housing material: PC/ABS
rated current: 63A
number of poles: 5 (3P+N+PE)
clock-position: 6h
rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
contacts: brass, with lamellar spring (CuBe)
connection technology: screw terminals
wall mounting, mechanical interlock, hinged window (6 modules), DIN-rail
switch: ON/OFF PCE-Merz ML2-063; EN 60947-3; AC22A, 10kA
cable entry: top, bottom or rear (incl. threaded blind cap)
IP protection class: IP66/IP67

Brand:

PCE

Type:

Switched Interlocked Sockets

Amperage:

63A

Pin Configuration:

3P+N+E (5 Pin)

Voltage:

415V

Colour:

Red

IP Rating:

IP67

Pin Position (Clock):

6H

Incoming Amperage:

63A

Current Rating Range:

63A

Connector Colour:

Red
