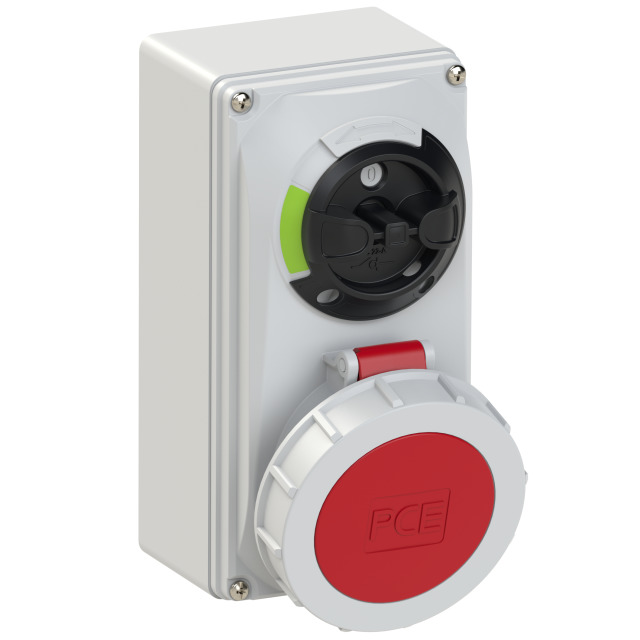

PCE Switched Interlocked Socket Compact Series 32A 3P+E 400V IP67 61242-6
Our No: 1538
Manufacturer No: 61242-6
| Units | % | Price per unit |
|---|---|---|
| 2 | 5% | £82.88 |
| 4 | 10% | £78.52 |
£87.24
£104.69 (inc VAT)
CEE-switched interlocked socket compact 32A 4p 6h IP66/IP67
CEE-switched interlocked socket compact 32A 4p 6h IP66/IP67
housing material: PA6 + PC/ABS
rated current: 32A
number of poles: 4 (3P+PE)
clock-position: 6h
rated voltage/frequency: 380-415V~ / 50+60Hz
contacts: brass nickel plated
connection technology: screw terminals
wall mounting, mechanical interlock
switch: ON/OFF PCE-Merz ML0; EN 60947-3; AC22A, 10kA
IP protection class: IP66/IP67
Brand:
PCE
Type:
Switched Interlocked Sockets
Amperage:
32A
Pin Configuration:
3P+E (4 Pin)
Voltage:
415V
Colour:
Red
IP Rating:
IP67
Pin Position (Clock):
6H
Incoming Amperage:
32A
Current Rating Range:
32A
Connector Colour:
Red
