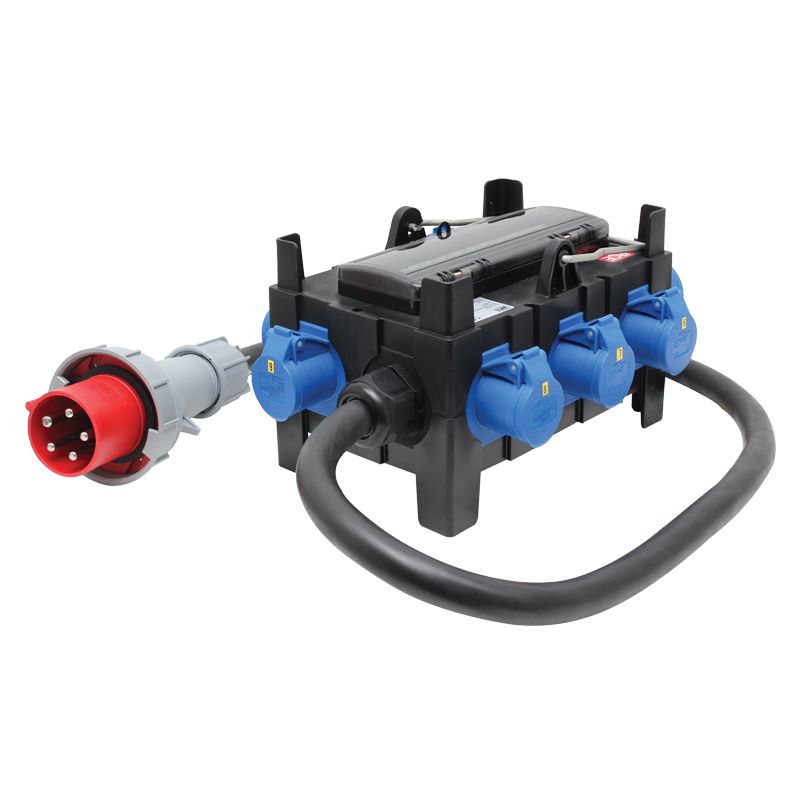

PCE ISCHL Distro 63A 3pH+N+E 400V to 3 x 32A + 6 x 16A 1pH+N+E 230V IP44 6 x RCBO's 9130027

PCE ISCHL Distribution Box 63A 3P+N+E 415V to 3 x 32A + 6 x 16A 2P+E 230V IP44 with 6 x RCBO's

PCE ISCHL distribution boxes are compact, robust, lightweight, and made of shock-resistant polyamide. Suitable for events and rental they are IP44 splash proof rated.

Features & Specifications

·         Handy, robust and lightweight distribution box made of shock-resistant polyamide

·         Up to 13 modules under clear MCB window

·         IP44 rated

·         Stackable design for space saving

·         Made in the EU:

Incoming:
63A PCE Plug 3P+N+E 415V  IP67 on a 2 Metre H07RN-F 16MM 5Core trailing cable
Incoming protection: N/A
Outgoing:
3 x 32A 220-250V~50/60Hz 2P+E sockets IP44
Protection:
3 x 32A 30mA 2pole RCBO ( 3 Sockets Supported by 3 x RCBO's )
Outgoing:
6 x 16A 220-250V~50/60Hz 2P+E sockets  IP44
Protection:
3 x 16A 30mA 2pole RCBO ( 6 Sockets Supported by 3 x RCBO's )

Dimensions: 200 x 400 x 320mm
