PowerBOX 63A 3pH+N+E 400V 3 x 16A 3 x 32 1pH+N+E 230V 2 x 32 3pH+N+E 400V MCB +10 x RCBO's

PowerBOX 63amp 3PH+N+PE 400/230V CUBE6467, p/n PBF63P 3M1 3M3 2P1 2P2 R67 (Siemens).

Box: enclosure in solid black LLDPE (GWT, IP54, insulated), transportable, stackable.

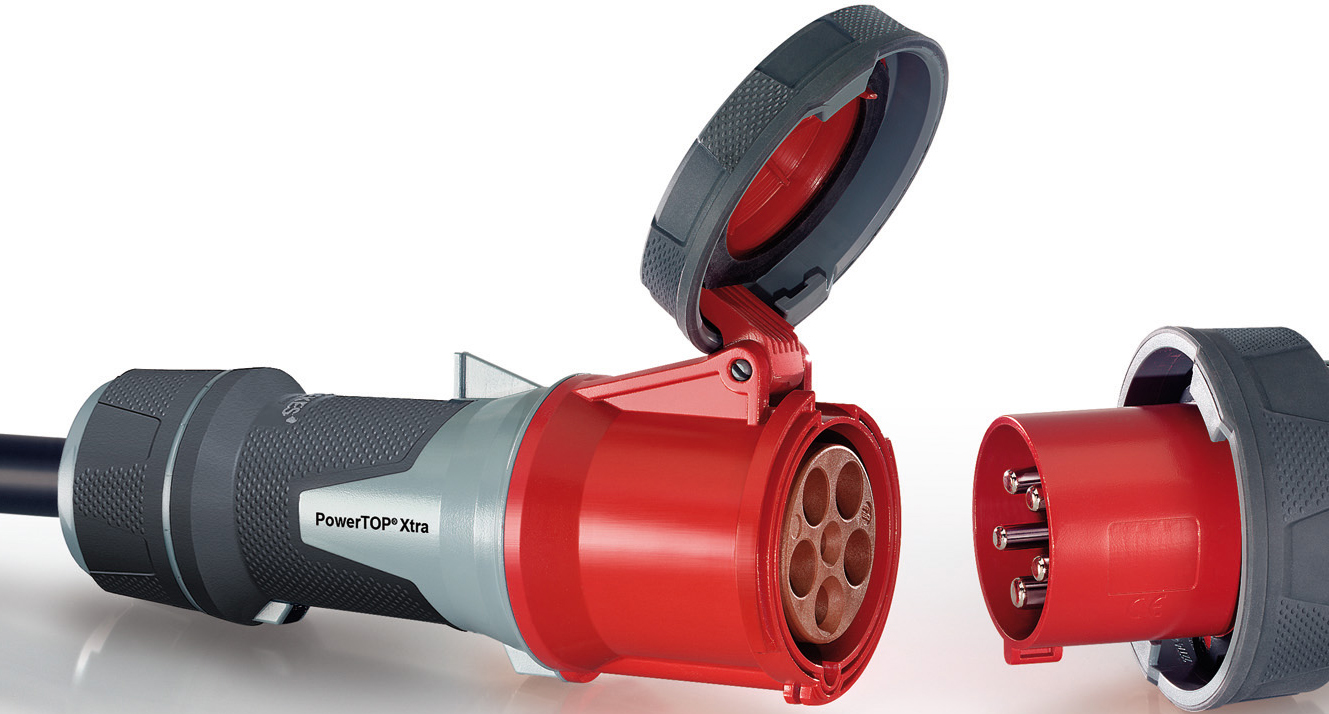

Incoming: 1 C-Form 63A 3pH+N+E  6h 400V IP67 flanged plug.

Loop: 1 C-Form 63A 3pH+N+E  6h 400V IP67 panel socket.

Main OUT: 1 MCB C63 4p 6kA 4M Din.

Outgoing:

3 x C-Form 16Amp 1pH+N+E  6h 230V IP44 panel sockets

3 x C-Form 32Amp 1pH+N+E  6h 230V IP44 panel sockets

2 x C-Form 16Amp 3pH+N+E  6h 400V IP44 panel sockets

2 x C-Form 32Amp 3pH+N+E  6h 400V IP44 panel sockets

Protection:

3 x RCBO C16 1pN 4.5kA Idn 0,03A A 1M Din (Siemens).

3 x RCBO C32 1pN 4.5kA Idn 0,03A A 2M Din.(Siemens).

2 x RCBO C16 4p 6kA Idn 0,03A A 4M Din.(Siemens).

2 x RCBO C32 4p 6kA Idn 0,03A A 4M Din.(Siemens).

Installed accessories:

1 fuse carrier 3pN 10,3x38mm 3M Din (F1) +

1 three-phase voltage indicator light 1M Din, 10 green leds (OUT),

1 red led (LOOP),

1 earth stud 63A.

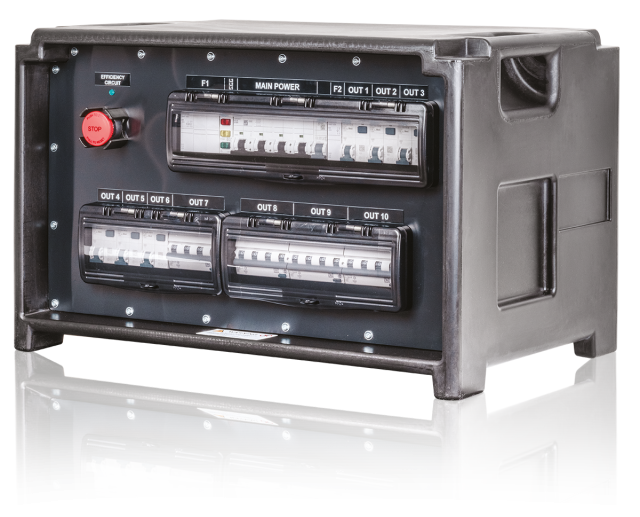

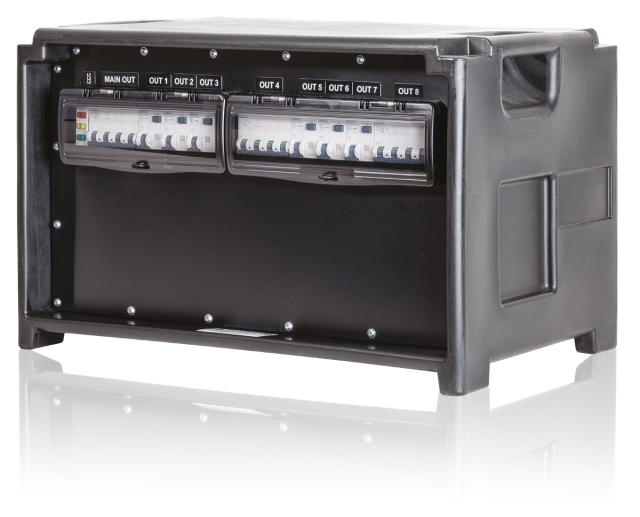

Components arrangement: rear side box / flanged plug (IN), panel socket (LOOP & OUT) with green leds and earth terminal. Front side box / Main switch and protection switches.

Other notes: box dimensions W600 x D400 x H670mm, weight 30,00kg approx.

Technical data: IEC 61439-1 & 2 / PSC, CE / UKCA marking, Ue 400/230V 3PH+N+PE, fn 50Hz, InA 63A, Icc 6.000A, RDF 50/100, IP44, Electrical insulation class I (first).
