PowerBOX 63A 3pH+N+E 400V 3 x 16A 6 x 32 1pH+N+E 230V 1 x 32 3pH+N+E 400V MCB +11 x RCBO's

PowerBOX 63amp 3PH+N+PE 400/230V CUBE6467, PBF400P 4P2 2P3 1P4 R67-S (Siemens).

Box: Merz enclosure in solid black LLDPE (GWT, IP54, insulated), transportable, stackable.

Incoming: 63A 3pH+N+E 6h 400V IP67 Appliance Inlet PCE Midnight Series Black

Loop Through Socket: 63A 3pH+N+E 6h 400V IP67 panel socket PCE Midnight Series Black

·         Main OUT: 1 MCB C63 4p 6kA 4M Din.

·         Outgoing Sockets:

·         3 x 16Amp 1pH+N+E 6h 230V IP44 panel sockets PCE Midnight Series Black

·         6 x 32Amp 1pH+N+E 6h 230V IP44 panel sockets PCE Midnight Series Black

·         1 x 16Amp 3pH+N+E 6h 400V IP44 panel sockets PCE Midnight Series Black

·         1 x 32Amp 3pH+N+E 6h 400V IP44 panel sockets PCE Midnight Series Black

·         Protection:

·         3 x RCBO C16 1pN 4.5kA Idn 0,03A A 1M Din. (Siemens).

·         6 x RCBO C32 1pN 4.5kA Idn 0,03A A 2M Din.(Siemens).

·         1 x RCBO C16 4p 6kA Idn 0,03A A 4M Din.(Siemens).

·         1 x RCBO C32 4p 6kA Idn 0,03A A 4M Din.(Siemens).

·         Installed accessories:

·         1 fuse carrier 3pN 10,3x38mm 3M Din (F1) +

·         1 three-phase voltage indicator light 1M Din, 10 green led (OUT),

·         1 red led (LOOP),

CE / UKCA marking

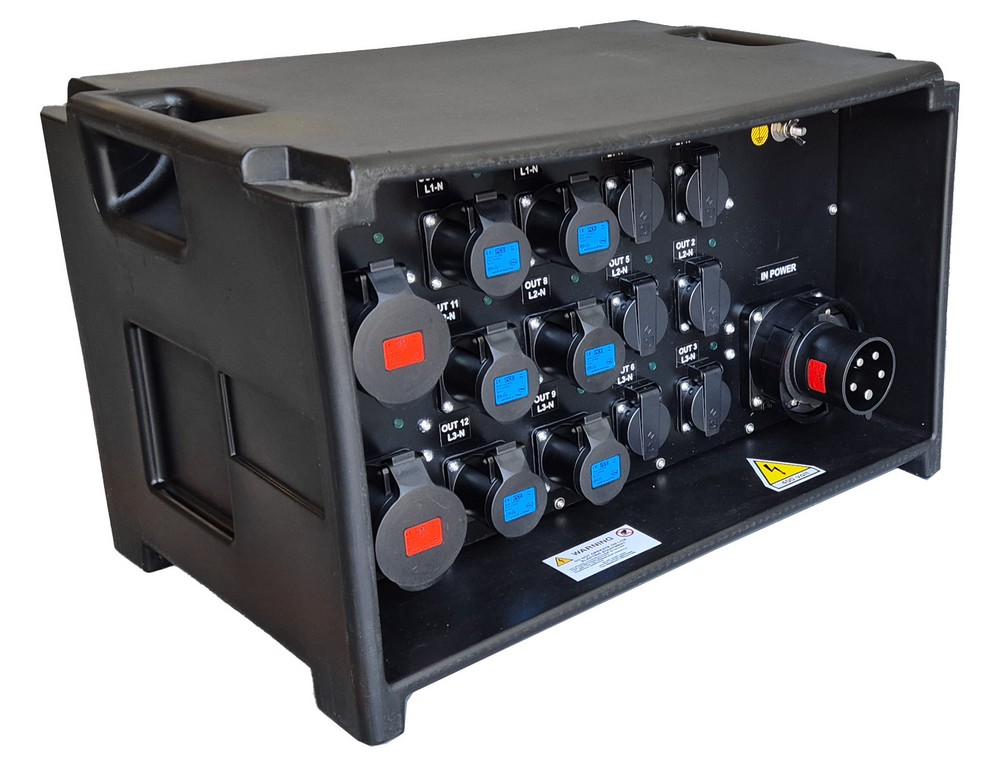

Components arrangement: rear side box / flanged plug (IN), panel socket (LOOP & OUT) with green leds and earth terminal. Front side box / Main switch and protection switches.

Other notes: box dimensions W600 x D400 x H670mm, weight 30,00kg approx.

Technical data: IEC 61439-1 & 2 / PSC, CE / UKCA marking, Ue 400/230V 3PH+N+PE, fn 50Hz, InA 63A, Icc 6.000A, RDF 50/100, IP44, Electrical insulation class I (first).
