PowerBOX 63A 3pH+N+E 400V To 6 x 16A 1pH+N+E 3 x 32A 230V IP44 +9 x RCBO's

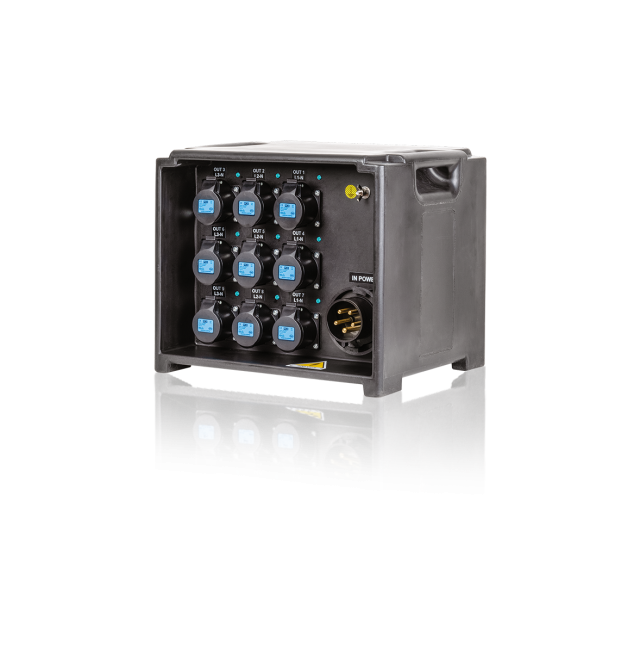

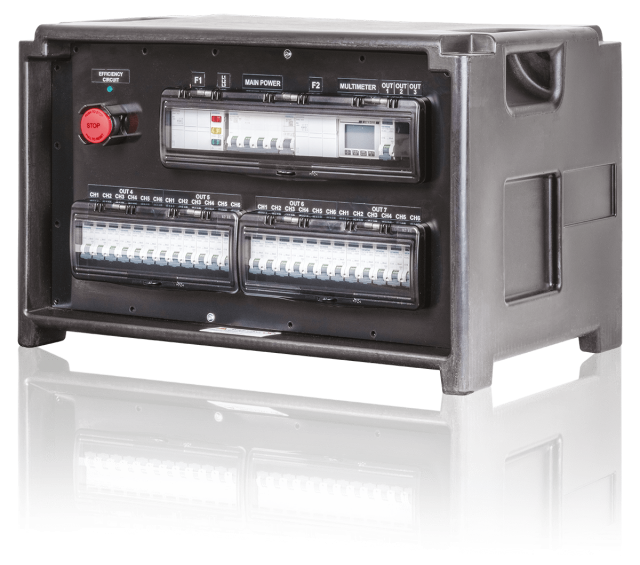

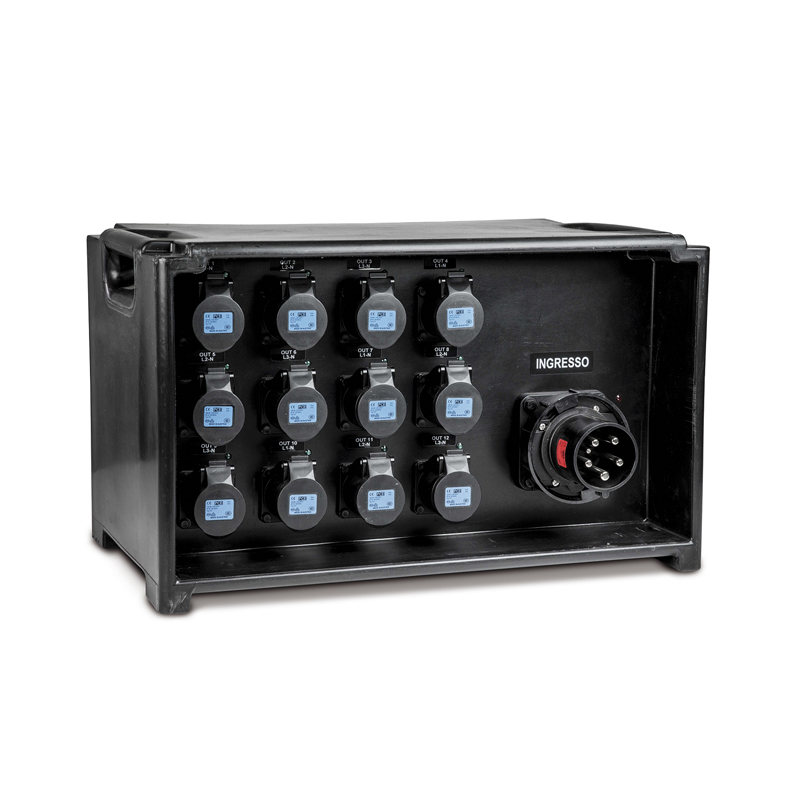

PLEASE NOTE THAT THE PRODUCT IMAGE IS FOR ILLUSTRATION PURPOSES ONLY AND DOES NOT REPRESENT THE SPECIFICATION DESCRIBED BELOW

PowerBOX 63Amp 3pH+N+E 400V

Incoming (Rear):
63Amp 3P+N+E 6h 400V IP67 Appliance Inlet Red colour
Incoming Protection: N/A
Outgoing (Rear):
6 x 16Amp 1pH+N+E  6h 230V IP44 Panel Sockets Black colou

3 x 32Amp 1pH+N+E  6h 230V IP44 Panel Sockets Black colour

9 x LED green color (OUT 1 / 12)
Outgoing Protection (Front):
1 red LED triple indicator light 230VAC (L1-L2-L3; incoming main LED)
6 x RCBO 16Amp 1pN-C 4.5kA 30mA type A

3 x RCBO 32Amp 1pN-C 4.5kA 30mA type A

1 x Earth Stud
1 hinged window 6U DIN IP54
Internally:
1 x fuse disconnector 32amp 3pN size 10,3x38mm. (F1; incoming main LED)

Additional Information:
Technical Data: 3pH+N+E 400V 50Hz, IP44, Icc=4.5kA, insulation class I
Wired, tested and ready for the final installation
W560xH340xD350mm
12 Months Warranty

CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

The CE marking is required for many products. It:

• Shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
• Is an indicator of a product’s compliance with EU legislation
• Allows the free movement of products within the European market

Available in many different configurations, built to your individual specifications. Call us to build yours.
