PowerBOX Rubber 32A 1pH+N+E 230V Brick PCE Midnight Series to 4 x 13Amp With RCBO + 2 x MCB's

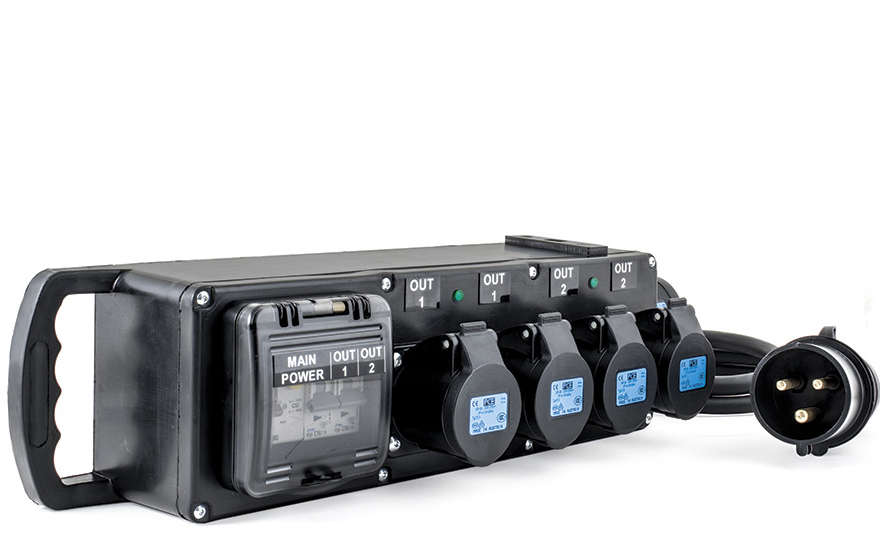

PowerBOX 32Amp 1pH+N+E  230V “BRICK” series with 4 x BS 13A UK 3p 230V PCE sockets IP54 (black color)

Example Video Only: The specification in this video is different from the product on this page​

Image used for illustration purposes only.

• Incoming:
• 32A 1pH+N+E 230V IP44 PCE  plug (black colour) on a 1 Metre HO7RN-F cable 3G6 mm²
• the box, the lid of the box, the spiral flex for cable strain relief, the British sockets are all IP54
• Incoming Protection:
• 1 x RCBO 32Amp 1pN-C 4.5kA 30mA Type A ( MAIN )
• 1 neon lamp red colour.
• Outgoing:
• 4 x 13A UK Standard PCE Sockets 2P+E (black colour) IP54
• Outgoing Protection:
• 2 MCBs 13A 1pN-C 4.5kA ( OUT 1, 2 )
• 1 hinged window 4U IP54.
• 2 led green color(out)
• BS 1363 is a British Standard

CE DECLARATION OF CONFORMITY
LOW VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES IN COMPLIANCE
WITH THE STANDARD IEC 61439-1/2 (EN 61439-1/2)

The CE marking is required for many products. It:
·         shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
·         is an indicator of a product’s compliance with EU legislation
·         allows the free movement of products within the European market
Also available in other configurations, please call for more information.

Rubber power distribution box, ideal for the stage and events environment, supplied with PCE Midnight Series (Black) plug and PCE ( Black) 13a British Standard sockets, with RCBO on the incoming and MCB type C on outgoing sockets.

Image used for illustration purpoeses only.

Made in Italy.
