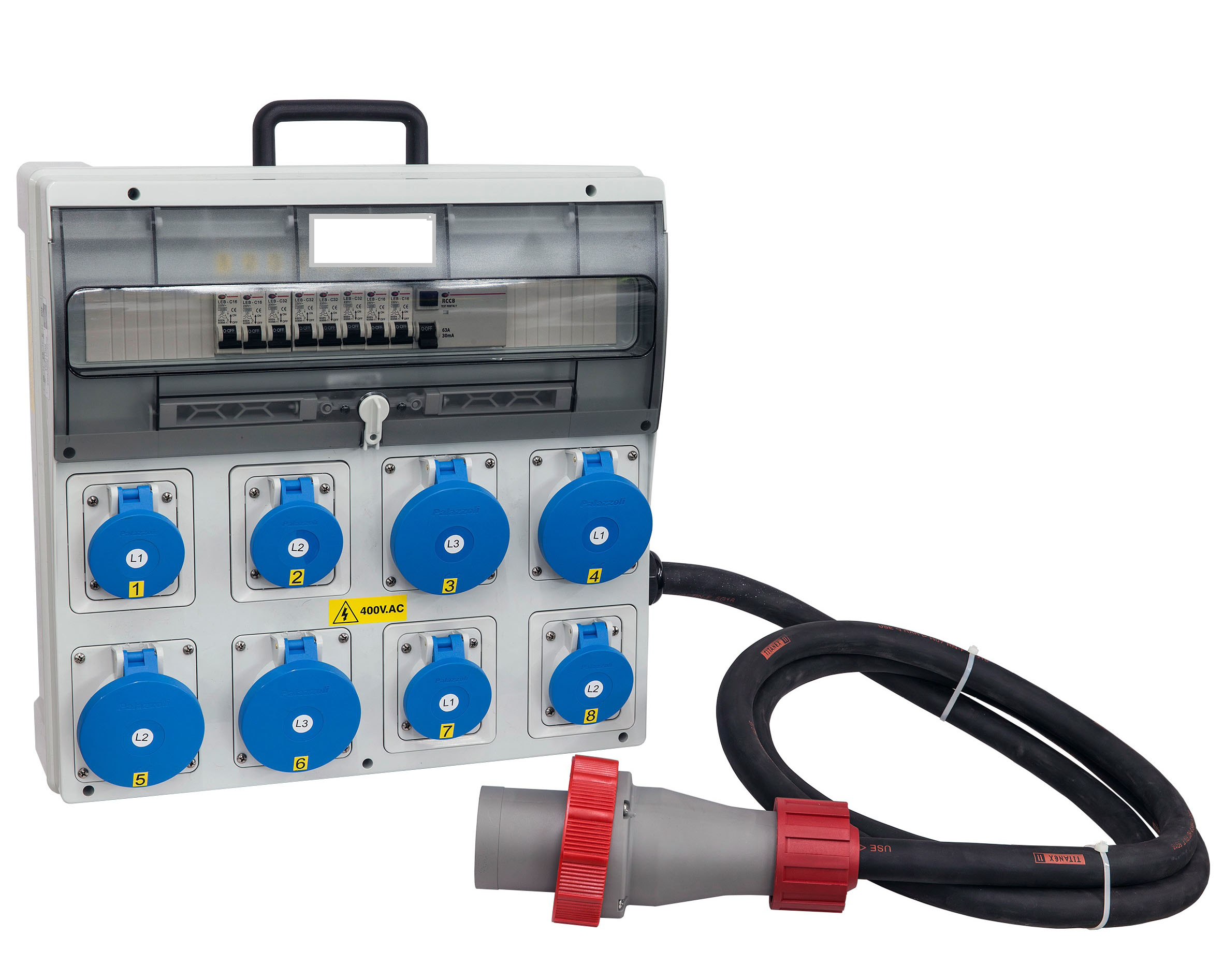

Palazzoli topTER Wall or Portable Mount Distribution Box 63A 3P+N+E 400V Made to Order

Palazzoli topTER Wall or Portable Mount Distribution Box 63A 3P+N+E 3 Phase, supplied with 2 Metre HO7RN-F 16mm Cable
with 63A 3P+N+E Palazzoli Plug.

Wall mount or portable: Ask us for your tailor-made solution.

This model.

• Wall mounted thermo-plastic 8 way socket station – IK 08 impact resistance, for use on a 400 volt 3 ph. supply.
• All control devices are located behind a hinged inspection window,, fitted and wired as follows.
• 1 x 63 amp 5 pin 400 volt IP67 supply plug c/w 2 metre 5C HO7RNF 16 mm rubber supply lead
• 1 x 63 amp 4 pole mains isolator feeds
• 6 x 32 amp 3 pin 230 volt IP44 socket outlets
• 2 x 16 amp 3 pin 230 volt IP67 socket outlets
• Protection:
• 6 x 32 amp 1 pole ‘B’ type 30mA RCBO’s
• 2 x 16 amp 1 pole ‘B’ type 30mA RCBO’s
• Supplied with carry handel ( Available without )
• Supplied with stand ( Available without ) )

Size: 460mm wide x 456mm high x 165mm deep


Over 80 popular configurations are available, pre assembled off - site, making installation quick and easy.

Ready for use combinations and custome build solutions.
