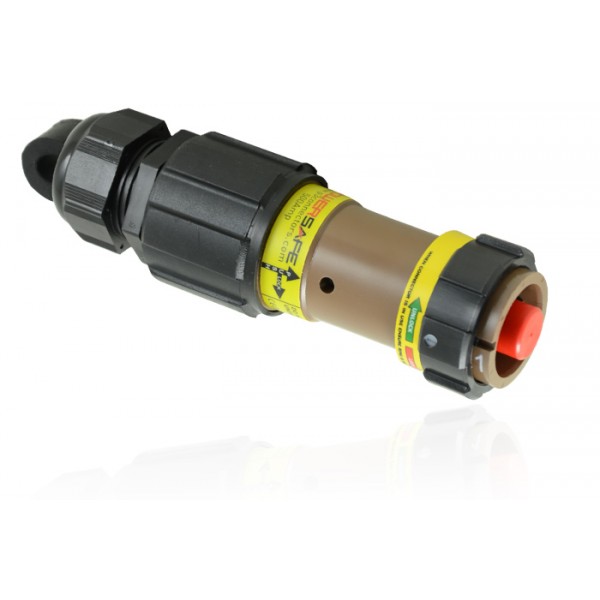

Powersafe Powerlock Rotalock 500Amp Line Source Connector 120 mm2 M40 Brown L1

 Powersafe Powerlock Rotalock 500Amp Line Source Brown L1 Connector M40 120 mm2 (This 120mm M40 Connector accepts most 150mm HO7RN-F cable)

Please note, if you require Powersafe for power cable less than Set Screw 120mm2, i.e. 95mm2, 70mm2, 50mm2, 35mm2, 25mm2, you must purchase a reducer kit separately as this product has set screw termination. See our part codes 8350 + 8349 in the accessories section.

Powersafe are available in Source & Drain format. Powerlock source connector has a male pin and the drain connector has a female receptacle.

Source Powerlock Connectors

Powersafe is rated at 500A – higher than the usual 440A single pole device. 500A connectors are available with Set Screw Termination for power cables up to 150mm CSA. Powersafe also offers 800A connectors – higher than the standard 660A powerlock connectors. 800A industrial plugs are available with Crimp Termination for larger cable sections up to 300mm CSA



Phase 3’s Powerlock connectors are of the highest rated, safest and finest quality Powerlock type plug available. Powersafe are used by the power distribution, events, military and cable assembly industries worldwide. Powersafe Earth inline connectors easily terminate to copper cable using either industry standard crimp tools or set-screw contacts. Secure coupling of the three phase plugs and sockets is achieved through an innovative mechanical locking system that disengages with a simple release key.

Benefits of Powersafe Inline Connectors

• Mechanically Keyed to eliminate the possibility of cross mating
• Secondary Locking prevent unintentional uncoupling under load
• Finger-proof protection against electric shock IP2X
• Waterproof & Dustproof to IP67 rated
• Colour Coded for easy identification
• Innovative contact band allows higher rating (400A > 500A, 660A > 800A)
• Contact band cannot come out
• High Impact Insulator (no glass used & flame retardant)
• Field Installation no special tools required
• Integral Cable Strain Relief
• Daisy Chain Capability facilitates flexible stock cable lengths
• Large Cable Range 25mm² - 300mm²

Ampage & Cable Size Explained

Powersafe Connectors are available in either source or drain format as 800A or 500A. Device ampage is determined by cable size (termination). 300mm²-240mm² power cable requires 800A plugs, 185mm² - 25mm² power cable is supplied with 500A plugs.

Please note, if you require Powersafe for power cable less than Set Screw 120mm², i.e. 95mm², 70mm², 50mm², 35mm², 25mm², you must purchase a reducer kit separately , call for info
