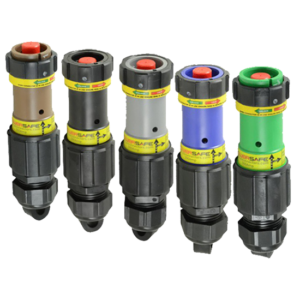

Powersafe Powerlock Rotalock Full Set of 5 x 800Amp Line Source 240 mm2 M40B

Powersafe Rotalock Full Set 5 x 800Amp Line Source Powerlock M40B 240 mm2

Source Powerlock Rotalock Connectors - Powersafe Rotalock Connectors are only required in the Source format, either Panel or Inline.

Phase 3 Powersafe connectors with the Rotalock option are now available. The traditional method of uncoupling Powersafe connectors requires a separate unlocking key to push the spring loaded locking pin out of its recess, thereby allowing the connectors to be uncoupled. With the Rotalock versions, uncoupling is achieved by simply rotating a coupling ring. When rotated the coupling ring moves in a lateral plane to disengage the locking pin.

In this way no separate tools are required for uncoupling. The Rotalock can also be locked in the open position by turning two screws on the side of the ring; locking it in the open position. When this method is used a tool - such as a screwdriver - will be required to uncouple the connectors.

Phase 3 Powersafe Rotalock connectors are not available as an add-on. They must be ordered as a specific version of the connector which contains additional grooves that enable the Rotalock mechanism to function.
