Powersafe Powerlock Panel Mount Source Connector 500A L2 Black T5
Volume Discounts
Units | % | Price per unit |
---|---|---|
2 | 5% | £32.70 |

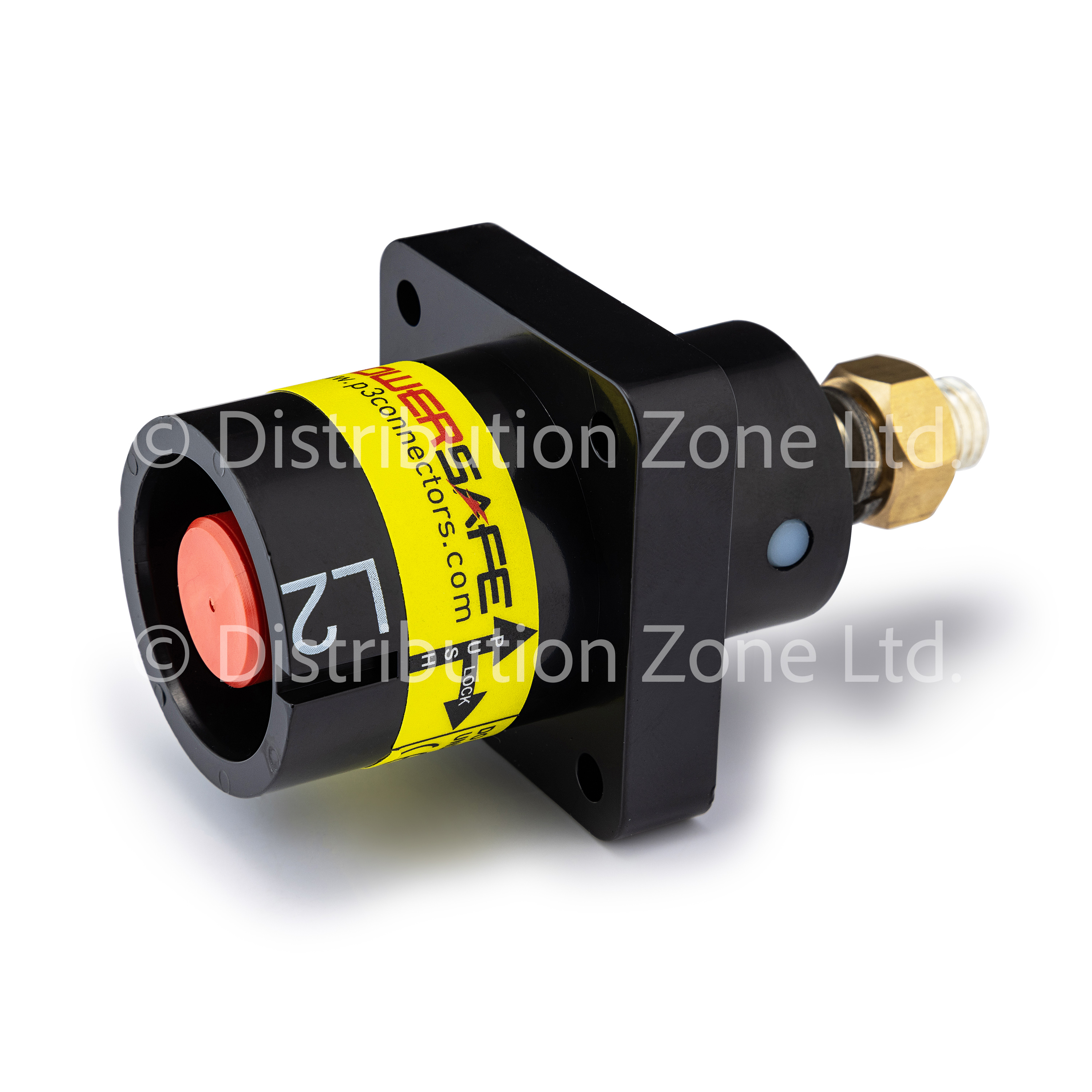

The 500A Panel Mount Source L2 Black T5 Connector comes fully assembled with a gasket, M12 threaded post and M12 nut and spring washer.
About The Connectors
The 500A connectors are manufactured using brass and silver plating and is capable of running between 400 – 500Amps. They can be terminated using any standard cable lug, and are available for all three phases plus Neutral and Earth. They have the same mechanical locking system as their inline counterparts; secure coupling of plug and socket is achieved through an innovative mechanical locking system that disengages with a simple release key.

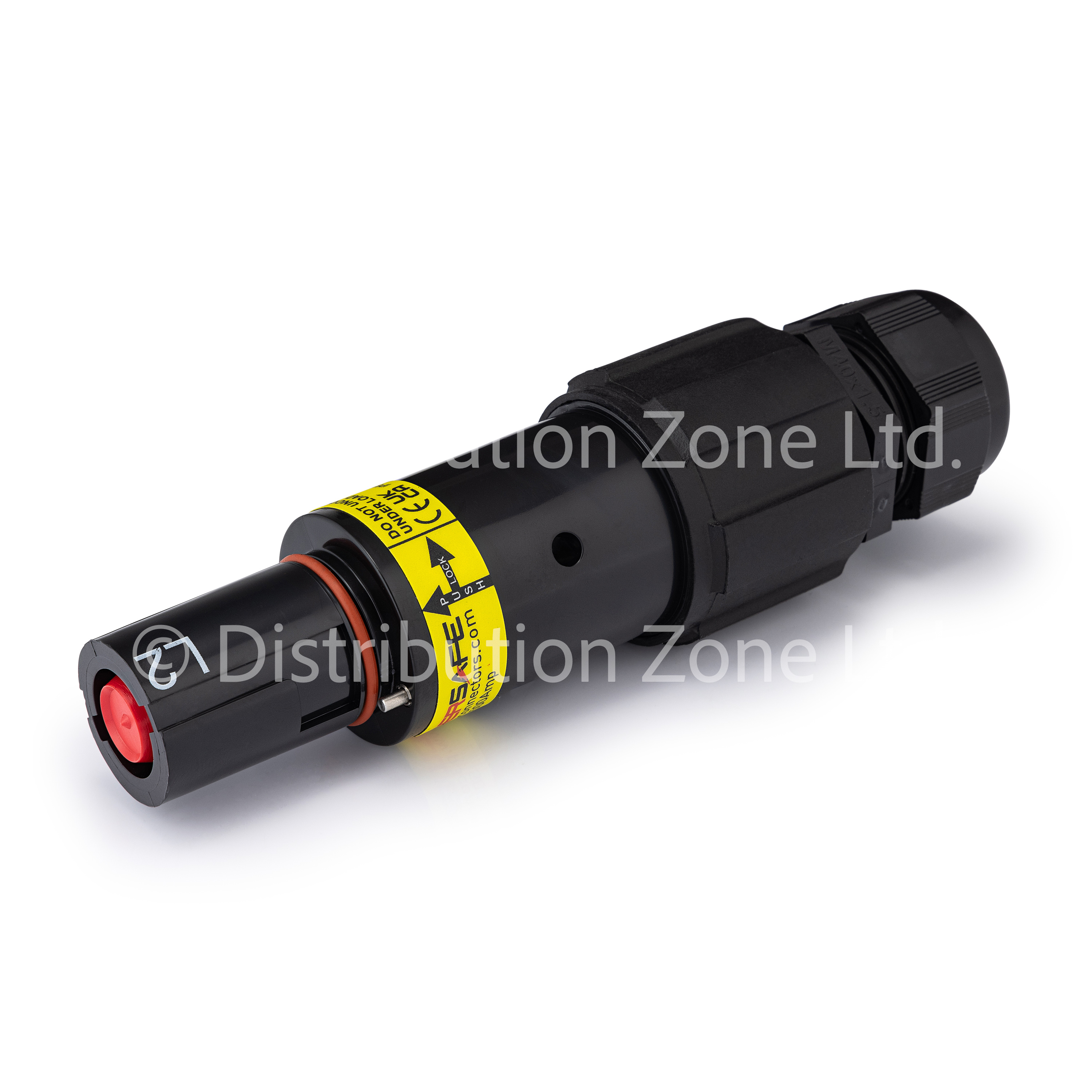

Both the 500A or 800A rated Panel Mount Source Connectors can mate with any sized Line Drain Connector (including those made by other manufacturers). The cable size determines the amperage available.
Safety & Performance Features
• Mechanically keyed to eliminate the possibility of cross mating
• Secondary locking prevents unintentional uncoupling under load
• Finger-proof protection against electric shock IP2X
• Waterproof & Dustproof to IP67 rated
• Colour coded for easy identification of three phase electricity
• Innovative contact band allows higher rating (400A > 500A, 660A > 800A)
• Contact band cannot come out
• High impact insulator (no glass used & flame retardant)
• Field installation no special tools required
• Gasket allows watertight securing to panel distribution boards
