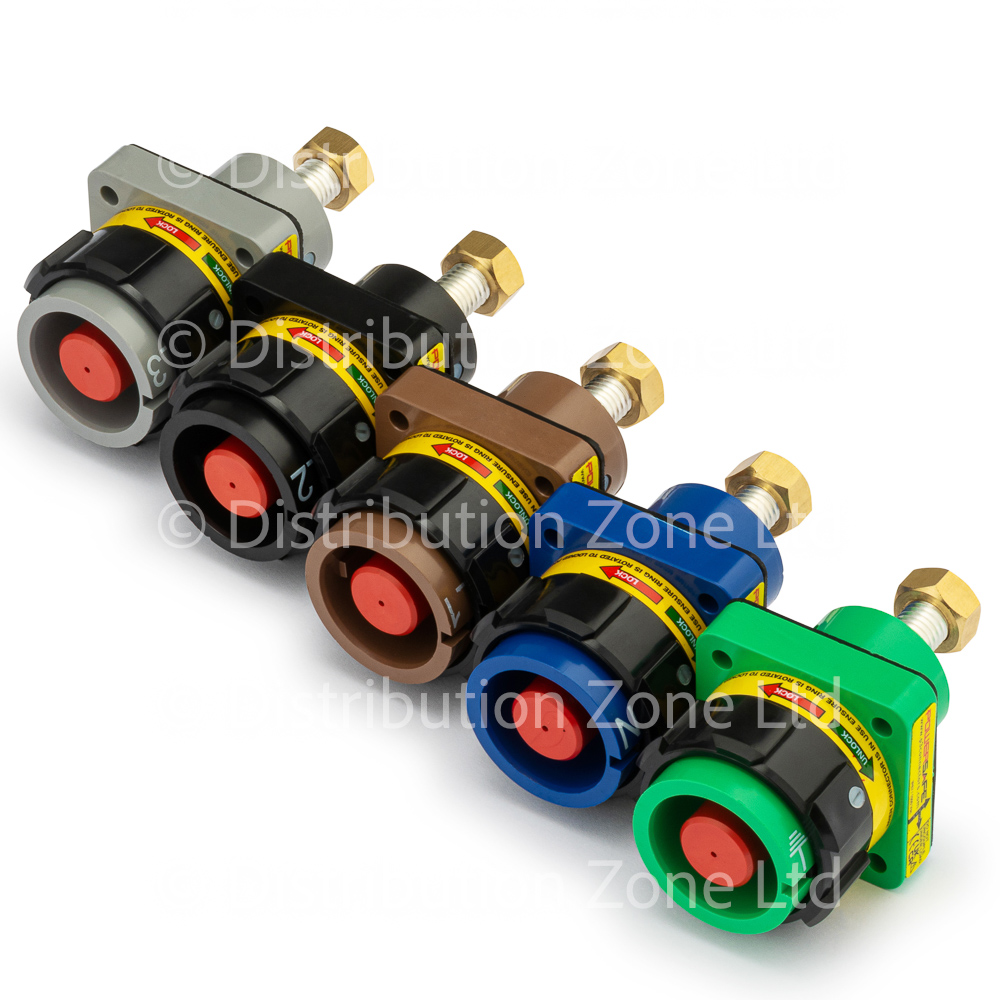

Powersafe Powerlock Rotalock Full Set of 5 x 800Amp Panel Source Connectors T8
Volume Discounts
Units | % | Price per unit |
---|---|---|
2 | 5% | £254.84 |

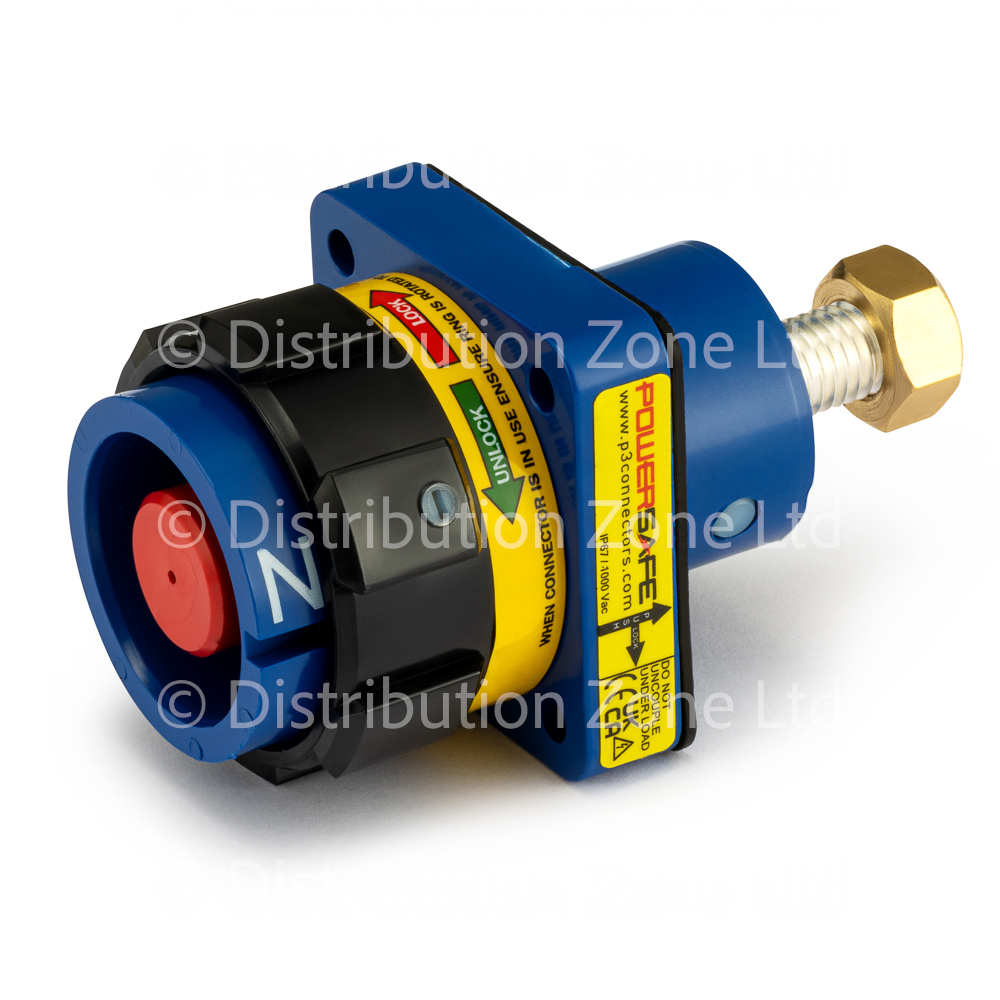

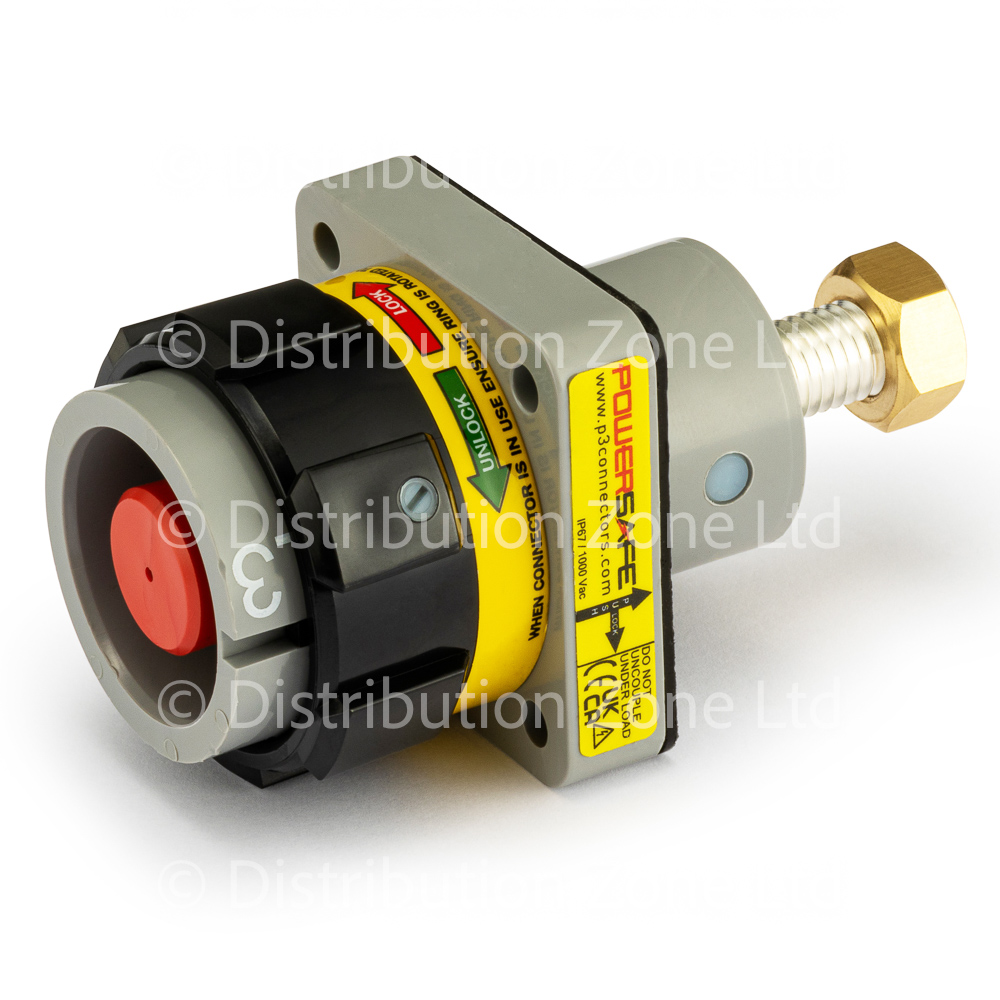

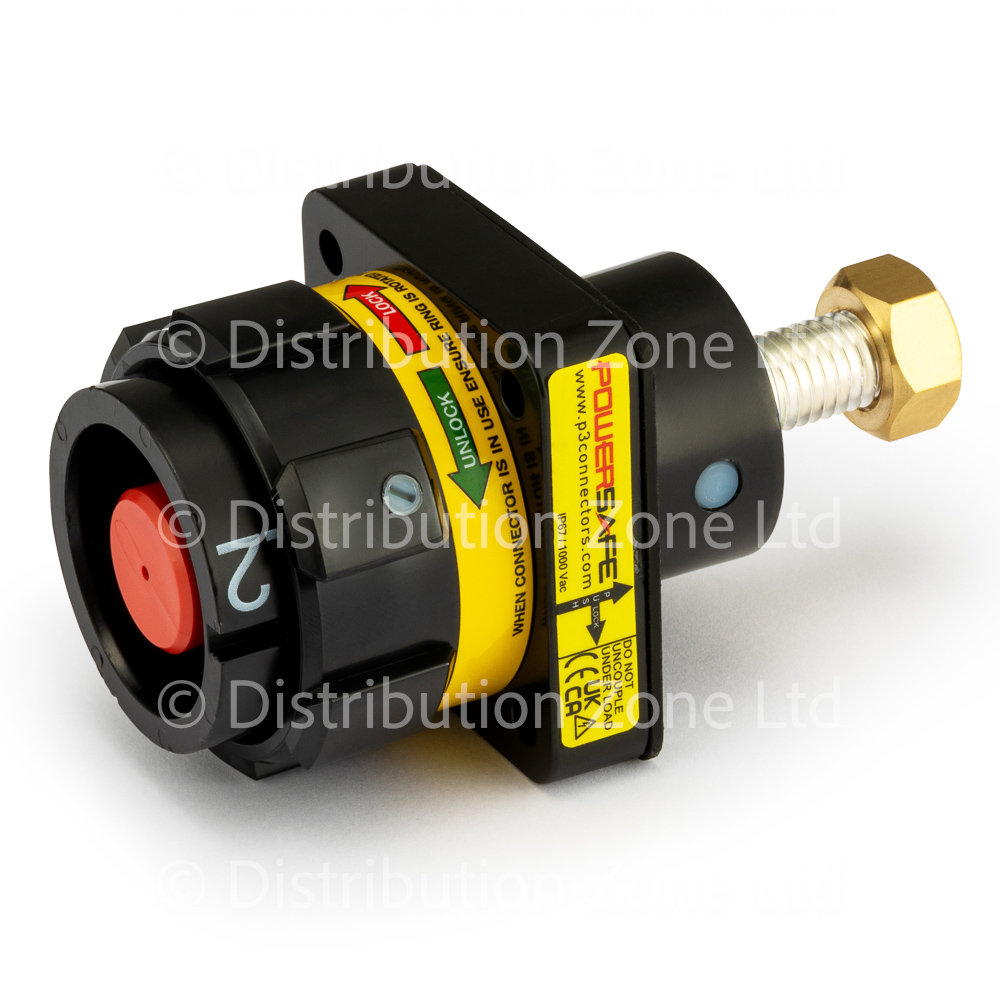

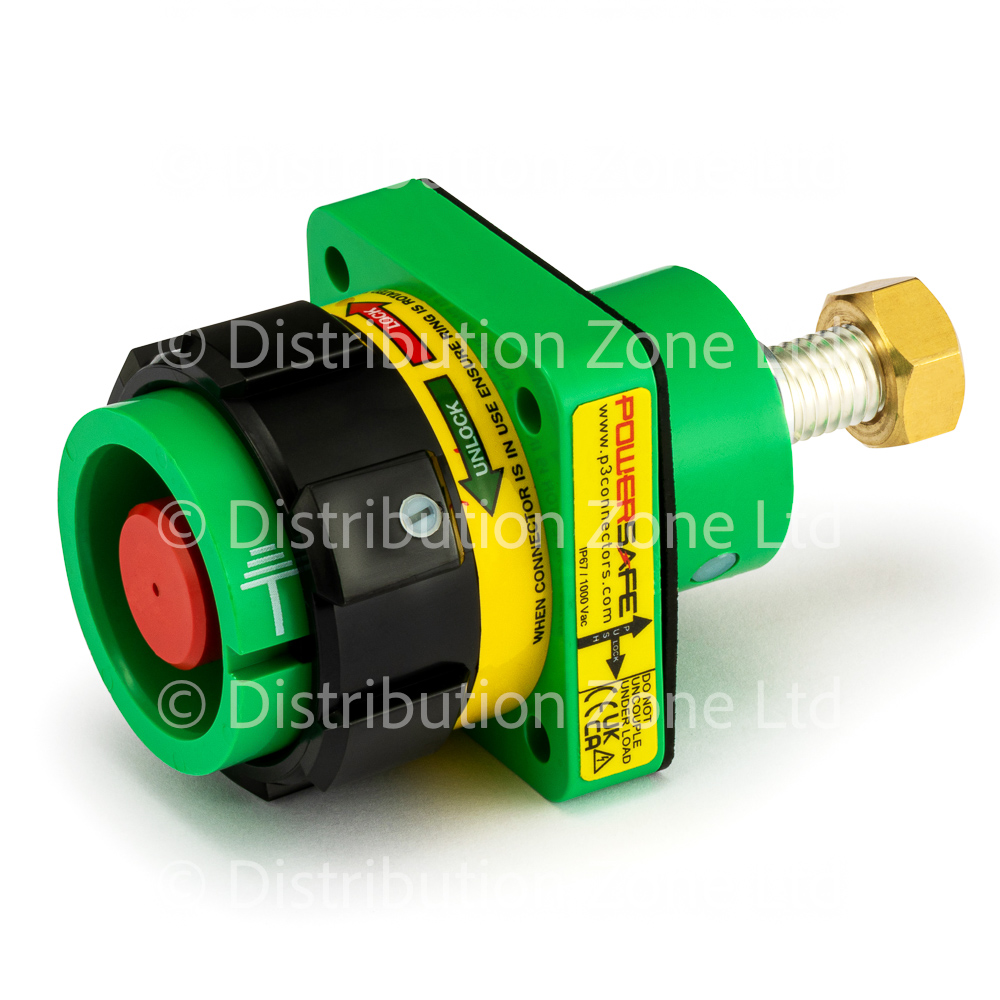

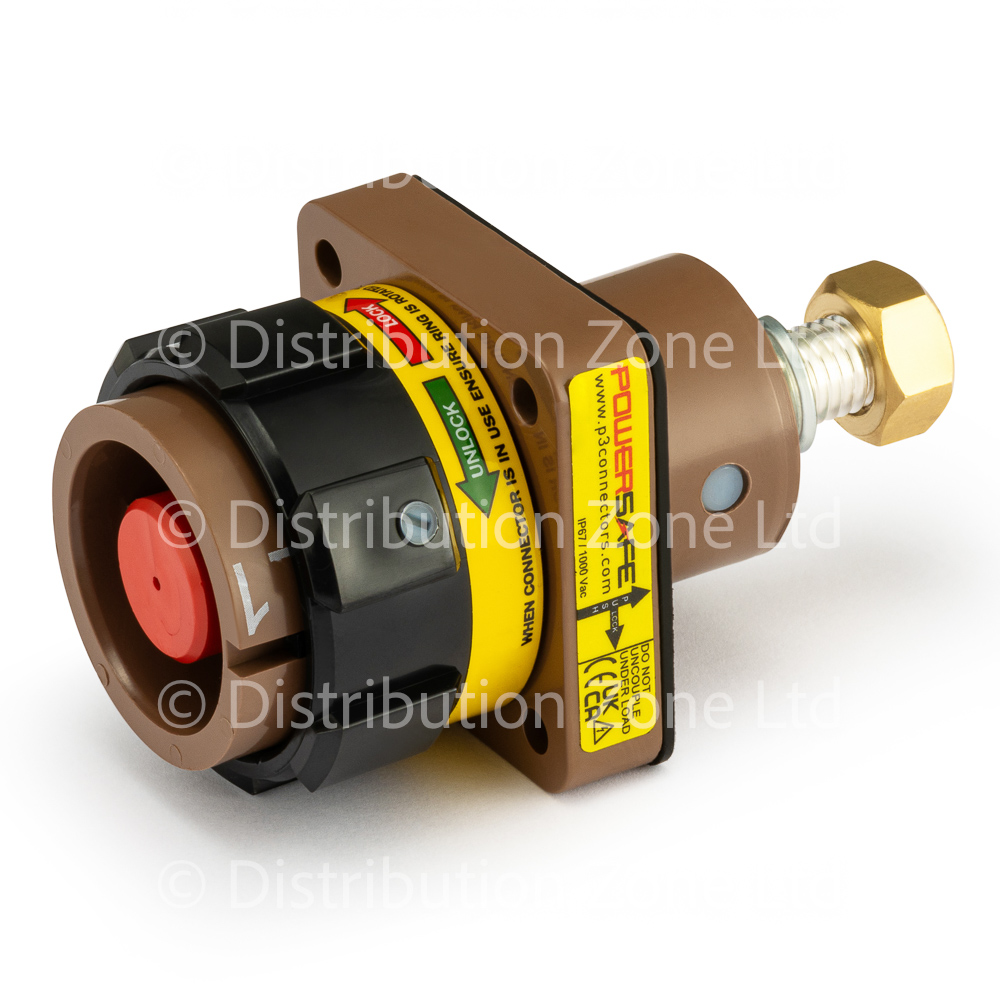

Powersafe Powerlock Rotalock Full Set of 5 x 800Amp Panel Source T8 Threaded Post Termination
Source Powerlock Rotalock Connectors - Powersafe Rotalock Connectors are only required in the Source format, either Panel or Inline.
Phase 3 Powersafe connectors with the Rotalock option are now available. The traditional method of uncoupling Powersafe connectors requires a separate unlocking key to push the spring loaded locking pin out of its recess, thereby allowing the connectors to be uncoupled. With the Rotalock versions, uncoupling is achieved by simply rotating a coupling ring. When rotated the coupling ring moves in a lateral plane to disengage the locking pin.
In this way no separate tools are required for uncoupling. The Rotalock can also be locked in the open position by turning two screws on the side of the ring; locking it in the open position. When this method is used a tool - such as a screwdriver - will be required to uncouple the connectors.
Phase 3 Powersafe Rotalock connectors are not available as an add-on. They must be ordered as a specific version of the connector which contains additional grooves that enable the Rotalock mechanism to function.
- 500A sockets are manufactured with brass with silver plating (400 amp - 500 amp)
- 800A sockets are manufactured using copper with silver plating (660 amp - 800 amp)
- Buy fully assembled with: gasket, M12 threaded post termination, M12 nut and spring washer.
- Tighten to a MAXIMUM of 12-14Nm.
