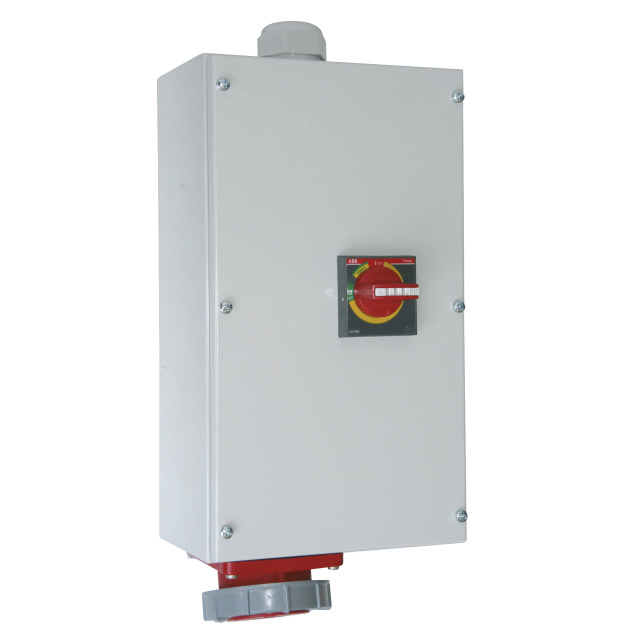

PCE Switched Interlocked Socket 125A 3P+N+E 400V IP67 9754100

Our No: 1821
Manufacturer No: 9754100
Stock Available: Out of Stock
7 to 10 Days

Volume Discounts

Units % Price per unit
2 10% £2112.49
£2,347.21
£2,816.65 (inc VAT)

CEE-socket switched 125A 5p 6h Metallgeh.Lasttr.4p Ea/Si

metal housing IP66 RAL 7035 WxHxD 260x460x220mm with
external wall mounting brackets
1xM63 cable gland on top (cable diameter 34-44mm PG48) black
1xBlind cap M63 from bottom side
1xCEE-sockets 125A 5p 400V with PCS System protected with
Switch-disconnector 125A 4poles with undervoltage release (Set to 125A)
Control circuit fused with MCB 2A 2p C
Switch made by Eaton ÖVE / VDE TYP NZM2 thermomagn.Ausl
Miniature circuit breaker made by SIEMENS
Distributor wired on terminal blocks 5x50qmm
Function: Through the PCS system in conjunction with the
switch-disconnector incl. undervoltage release, the
voltage-free plugging/unplugging of the 125A socket guaranteed
In addition, the mounted box is protected against automatic restarting.
secured after power failures of the supply line

Brand:

PCE

Type:

Switched Interlocked Sockets

Amperage:

125A

Pin Configuration:

3P+N+E (5 Pin)

Voltage:

415V

Colour:

Red

IP Rating:

IP67

Pin Position (Clock):

6H

Incoming Amperage:

125A

Current Rating Range:

125A

Connector Colour:

Red
