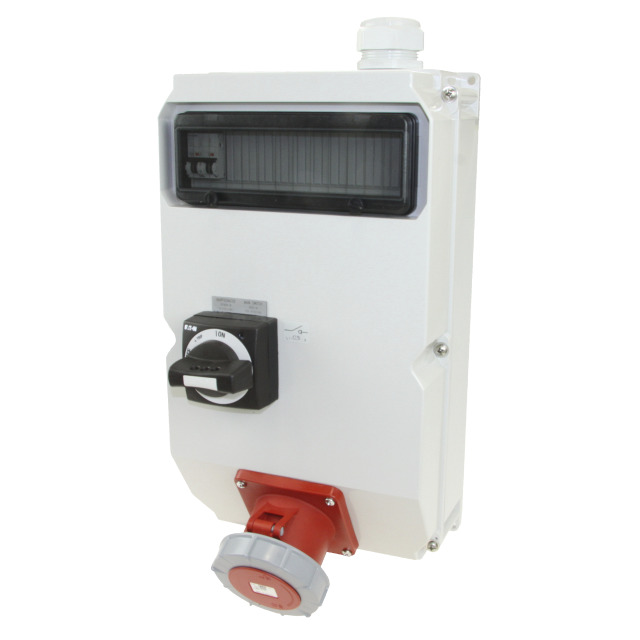

PCE Switched Interlocked Socket 125A 3P+N+E IP54 9029100
Our No: 2656
Manufacturer No: 9029100
| Units | % | Price per unit |
|---|---|---|
| 2 | 10% | £1575.00 |
£1,750.00
£2,100.00 (inc VAT)
CEE-switched socket Sölden IV 125A 5p 6h M63oBVu Lastt.4pEa
thermoplastic distribution box - wall mounted - model Sölden IP66 520x297x165 13TE
with external wall mounting brackets
1xM63 cable gland on top (cable diameter 34-44mm PG48) black
1x blind cable gland M63 from bottom
1xCEE-socket 125A 5p 400V with PCS system protected with
circuit breaker 125A 4p with integrated low voltage circuit breaker (for 125A)
control circuit protected with MCB 2A 2p C
MCB made by Eaton OVE / VDE
circuit breaker made by Eaton OVE / VDE TYP NZM1 thermic release
distribution box is wired on terminals 5x50qmm
task:
Through the PCS system in connection with the
switch disconnector including undervoltage release will be
the tension-free plugging and pulling on the socket 125A guaranteed
in addition the sockets are secured against automatic resetting after power failure of the supply line.
