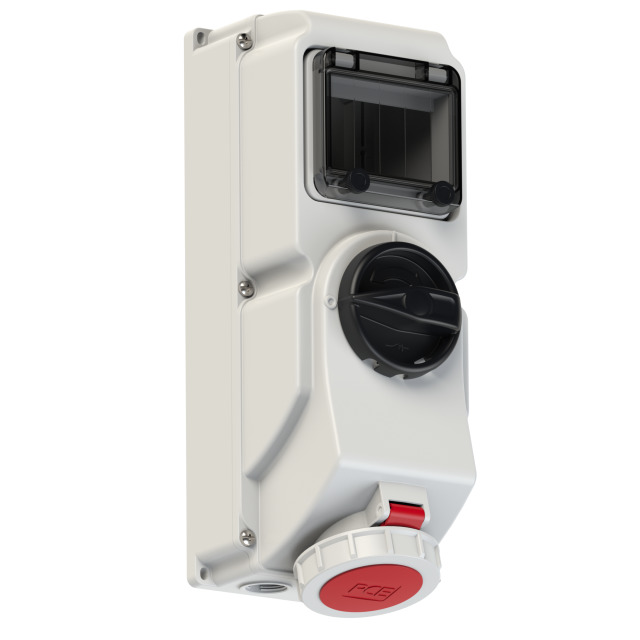

PCE Switched Interlocked Socket 16A 3P+N+E 400V IP67 RCD 76152-6-RCD

Our No: 2173
Manufacturer No: 76152-6-RCD
Stock Available: Out of Stock
2 to 3 days

Volume Discounts

Units % Price per unit
2 5% £162.52
5 10% £153.96
£171.07
£205.28 (inc VAT)

CEE-switched interlocked socket DIN 16A 5p 6h IP66/IP67 with 30mA RCD

CEE-switched interlocked socket DIN 16A 5p 6h IP66/IP67
housing material: PC/ABS
rated current: 16A
number of poles: 5 (3P+N+PE)
clock-position: 6h
rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
contacts: brass nickel plated
connection technology: screw terminals
wall mounting, mechanical interlock, hinged window (5 modules), DIN-rail
switch: ON/OFF PCE-Merz ML0; EN 60947-3; AC22A, 10kA
cable entry: top, bottom or rear (incl. threaded blind cap)
IP protection class: IP66/IP67

Brand:

PCE

Type:

Switched Interlocked Sockets

Amperage:

16A

Pin Configuration:

3P+N+E (5 Pin)

Voltage:

415V

Colour:

Red

IP Rating:

IP67

Pin Position (Clock):

6H

Incoming Amperage:

16A

Current Rating Range:

16A

Connector Colour:

Red
