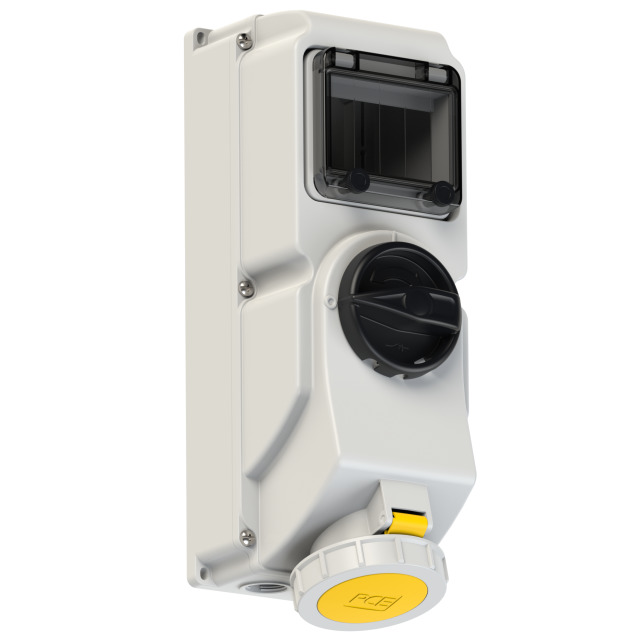

PCE Switched Interlocked Socket 32A 2P+E 110V IP67 76232-4

Our No: 4897
Manufacturer No: 76232-4
Stock Available: Out of Stock
2 to 3 days

Volume Discounts

Units % Price per unit
2 5% £107.45
5 10% £101.79
£113.10
£135.72 (inc VAT)

CEE-switched interlocked socket DIN 32A 3p 4h IP66/IP67

CEE-switched interlocked socket DIN 32A 3p 4h IP66/IP67
housing material: PC/ABS
rated current: 32A
number of poles: 3 (2P+PE)
clock-position: 4h
rated voltage/frequency: 100-130V~ / 50+60Hz
contacts: brass nickel plated
connection technology: screw terminals
wall mounting, mechanical interlock, hinged window (5 modules), DIN-rail
switch: ON/OFF PCE-Merz ML0; EN 60947-3; AC22A, 10kA
cable entry: top, bottom or rear (incl. threaded blind cap)
IP protection class: IP66/IP67

Brand:

PCE

Type:

Switched Interlocked Sockets

Amperage:

32A

Pin Configuration:

2P+E (3 Pin)

Voltage:

110V

Colour:

Yellow

IP Rating:

IP67

Pin Position (Clock):

4H

Incoming Amperage:

32A

Current Rating Range:

32A
