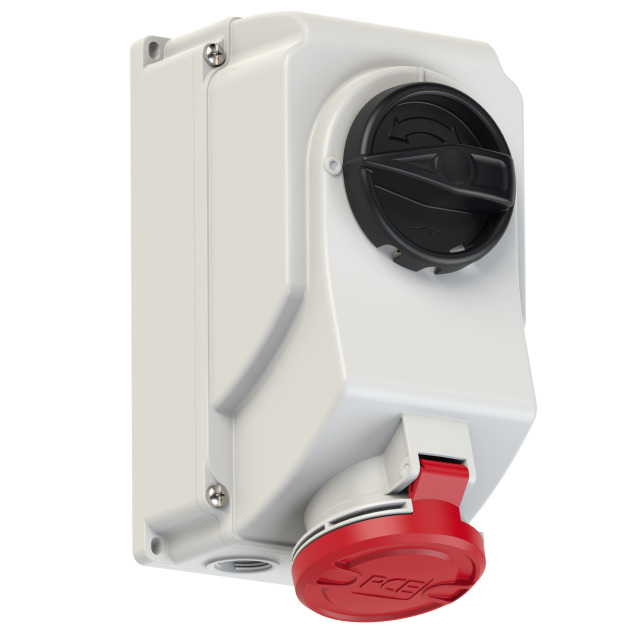

PCE Switched Interlocked Socket 32A 3P+E 400V IP44 7524-6
Our No: 9066
Manufacturer No: 7524-6
| Units | % | Price per unit |
|---|---|---|
| 2 | 5% | £99.97 |
| 4 | 10% | £94.71 |
£105.23
£126.28 (inc VAT)
CEE-switched interlocked socket 32A 4p 6h IP44/IP54
CEE-switched interlocked socket 32A 4p 6h IP44/IP54
housing material: PC/ABS
rated current: 32A
number of poles: 4 (3P+PE)
clock-position: 6h
rated voltage/frequency: 380-415V~ / 50+60Hz
contacts: brass nickel plated
connection technology: screw terminals
wall mounting, mechanical interlock
switch: ON/OFF PCE-Merz ML0; EN 60947-3; AC22A, 10kA
cable entry: top, bottom or rear (incl. threaded blind cap)
IP protection class: IP44/IP54
Brand:
PCE
Type:
Switched Interlocked Sockets
Amperage:
32A
Pin Configuration:
3P+E (4 Pin)
Voltage:
415V
Colour:
Red
IP Rating:
IP44
Pin Position (Clock):
6H
Incoming Amperage:
32A
Current Rating Range:
32A
Connector Colour:
Red
