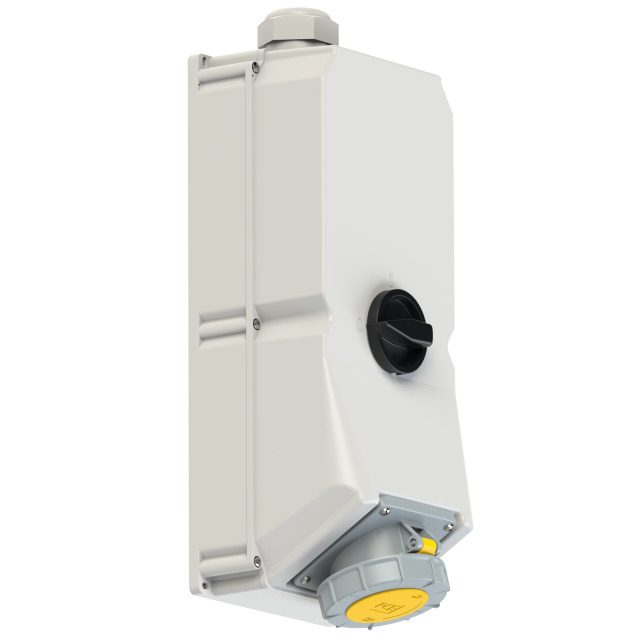

PCE Switched Mechanical Interlocked Socket 125A 110V 2P+E IP67 9755090
Our No: 10231
Manufacturer No: 9755090
| Units | % | Price per unit |
|---|---|---|
| 2 | 10% | £748.74 |
£831.93
£998.32 (inc VAT)
CEE-switched interlocked socket 125A 3p 4h IP67
CEE-switched interlocked socket 125A 3p 4h IP67
housing material: PC/ABS
rated current: 125A
number of poles: 3 (2P+PE)
clock-position: 4h
rated voltage/frequency: 100-130V~ / 50+60Hz
contacts: brass, with lamellar spring (CuBe)
connection technology: screw terminals
wall mounting, mechanical interlock
switch: ON/OFF PCE-Merz ML3; EN 60947-3; AC22A (AC3, 690V, 3~, 45kW)
cable entry: top
IP protection class: IP67
Brand:
PCE
Type:
Switched Interlocked Sockets
Amperage:
125A
Pin Configuration:
2P+E (3 Pin)
Voltage:
110V
Colour:
Yellow
IP Rating:
IP67
Pin Position (Clock):
6H
Incoming Amperage:
125A
Current Rating Range:
125A
