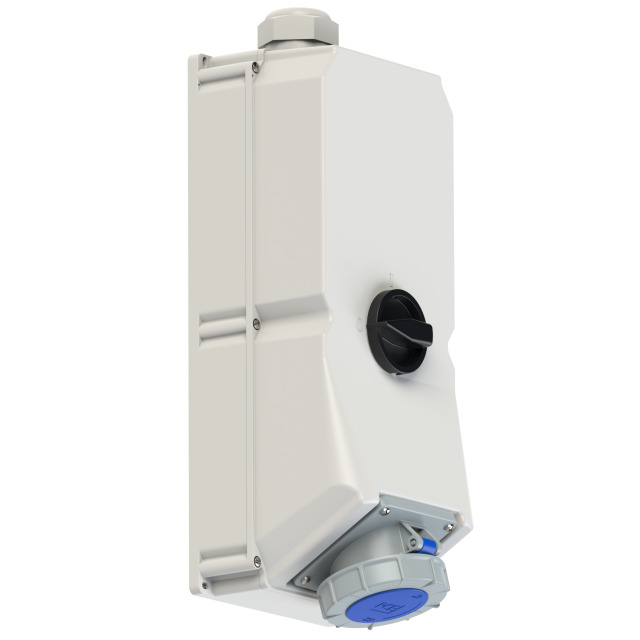

PCE Switched Mechanical Interlocked Socket 125A 230V 2P+E IP67 9755102

Our No: 9387
Manufacturer No: 9755102
Stock Available: Out of Stock
2 to 3 Weeks

Volume Discounts

Units % Price per unit
2 10% £839.63
£932.92
£1,119.50 (inc VAT)

CEE-switched interlocked socket 125A 3p 6h IP67

CEE-switched interlocked socket 125A 3p 6h IP67
housing material: PC/ABS
rated current: 125A
number of poles: 3 (2P+PE)
clock-position: 6h
rated voltage/frequency: 200-250V~ / 50+60Hz
contacts: brass, with lamellar spring (CuBe)
connection technology: screw terminals
wall mounting, mechanical interlock
switch: ON/OFF PCE-Merz ML3; EN 60947-3; AC22A (AC3, 690V, 3~, 45kW)
cable entry: top
IP protection class: IP67




Brand:

PCE

Type:

Switched Interlocked Sockets

Amperage:

125A

Pin Configuration:

2P+E (3 Pin)

Voltage:

230V

Colour:

Blue

IP Rating:

IP67

Pin Position (Clock):

6H

Incoming Amperage:

125A

Current Rating Range:

125A

Connector Colour:

Blue
