PowerSyntax Powerlock Chain Pilot box 480A Panel Drain 2.5U 108mm SPB4D05EUDPF
Our No: 11372
Manufacturer No: SPB4D05EUDPF
| Units | % | Price per unit |
|---|---|---|
| 2 | 7.5 | £899.00 |
| 4 | 10% | £809.10 |
£899.00
£1,078.80 (inc VAT)
PowerSyntax Powerlock Chain Pilot box 480A Panel Drain 2.5U 108MM Each one with its built-in microswitch. Also available as 750A Please call
The freedom to decide your own sequence
- The PowerSyntax Chain Pilot box features a set of PowerSyntax Chain Pilot connectors with either 5 Port L1+L2+L3+N+PE (or 4 Port L1+L2+L3+PE No Neutral),

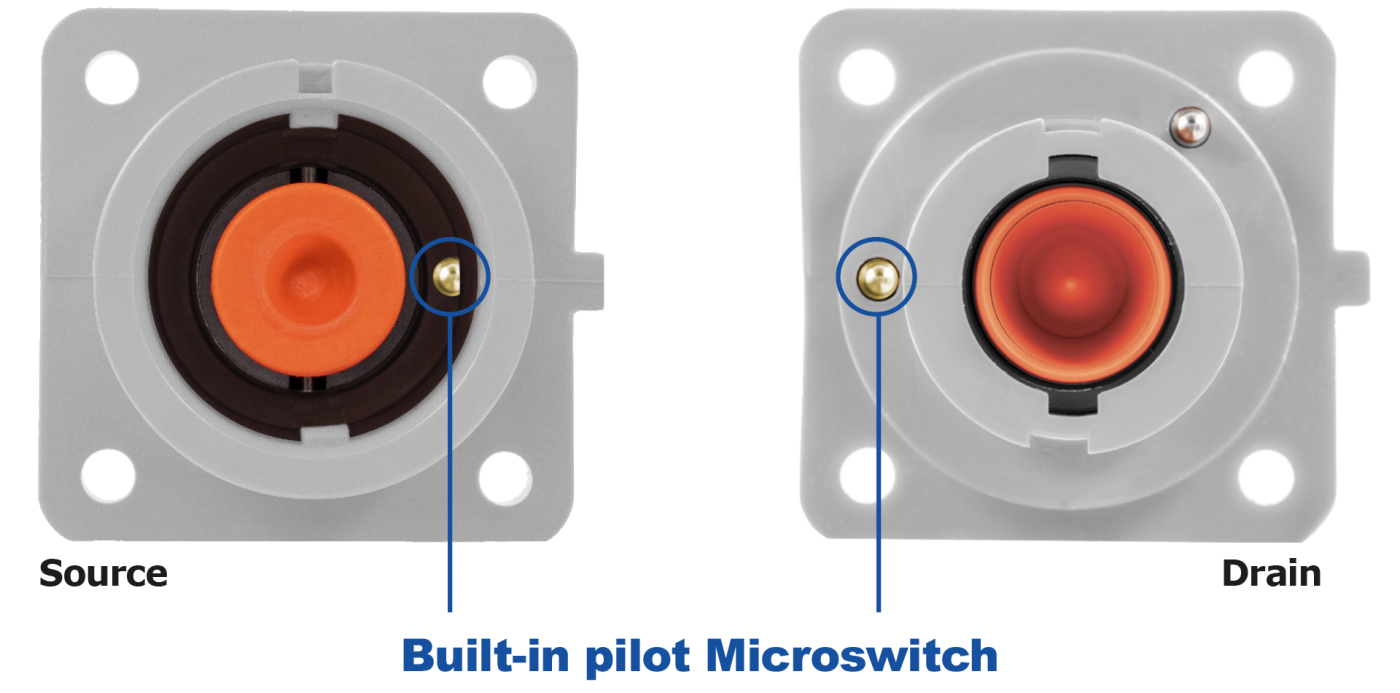

- Each one with its built-in microswitch.
- The connector’s microswitches control an auxiliary circuit connected to an external device (breaker, contactor, etc.)
- The system will only be activated once all the mechanically keyed cable connectors have been inserted in the corresponding panel-mount connectors on the Chain Pilot Box.
- There is no need to respect a sequential order when mating or unmating your connectors, unlike other Powerlock-compatible boxes.
- All connectors will de-energise should one become disconnected when in use.
- Chain pilot is also available as individual panel mount connectors, see main section for Panel Mount Powerlock connectors.
- CE & UKCA
- Interchangeable with standard PowerSyntax or other powerlock connectors.
IP67 caps are supplied as a standard ensuring water resistance when either connected or unconnected
Technical data
| Rated current: | 480Amp |
| Rated voltage: | 1000V AC / 1500V DC |
| Color coding: |
EUROPE: color coded connectors and panel inscriptions (E-green, N-blue, L1-brown, L2-black, L3-grey) Also available: |
| Model: | Drain |
| Contact material: | silver plated copper |
| Box material: | high temperature thermoplastic |
| Rack space Height: | 2.5U = 4.38 Inches 108mm |
| Endurance: | 500 + connection cycles |
| Degree of protection (connectors front side): | IP67 when mated of with environmetal caps fitted (IP67 caps supplied as a standard) |
| Degree of protection (connectors without caps): | IP2X finger-proof |
| Flammability: | UL94 - V0 |
| Operating temperature: | -30°C to +85°C |
| Safety notice: | The PowerSyntax chain pilot box should only be installed and operated by suitably qualified persons |
Brand:
PowerSyntax
Type:
Panel Mount Drain Connectors
Amperage:
480A
Gender:
Drain
Line:
Set of 5
Colour Group:
EU
Powerlock Colour:
Set of 5 Colours
Outgoing Sockets:
Powerlocks
