Powersafe Set of 5 x Reduction Sleeves Kit for Set Screw 500A 35mm cable
Our No: 8853
Manufacturer No: PP01641 (5 x PP01466)
| Units | % | Price per unit |
|---|---|---|
| 2 | 10% | £11.69 |
£12.99
£15.59 (inc VAT)
Description: Powersafe Set of 5 x Reduction Sleeves Kit for (Set Screw 120 mm2 M40 500A) for use with 35mm cable Reduction Kit and Cable Reduction Sleeves.
See Powersafe Termination Guide (on this page as a product download)
See Powersafe Termination Guide (on this page as a product download)
The Powersafe Reduction Kit is for use with a standard Set Screw Connector (120mm²). The reduction kit contains a series of 5 reducer sleeves that are used to reduce the Set Screw Connector (S120) cable bucket in the rear of the contact. A Powerlock reduction kit will allow termination to power cable sized from 95mm² to 25mm². The reducer set also includes the M40S and M40SS bush to allow cable clamping ranges of 10mm² - 19mm².

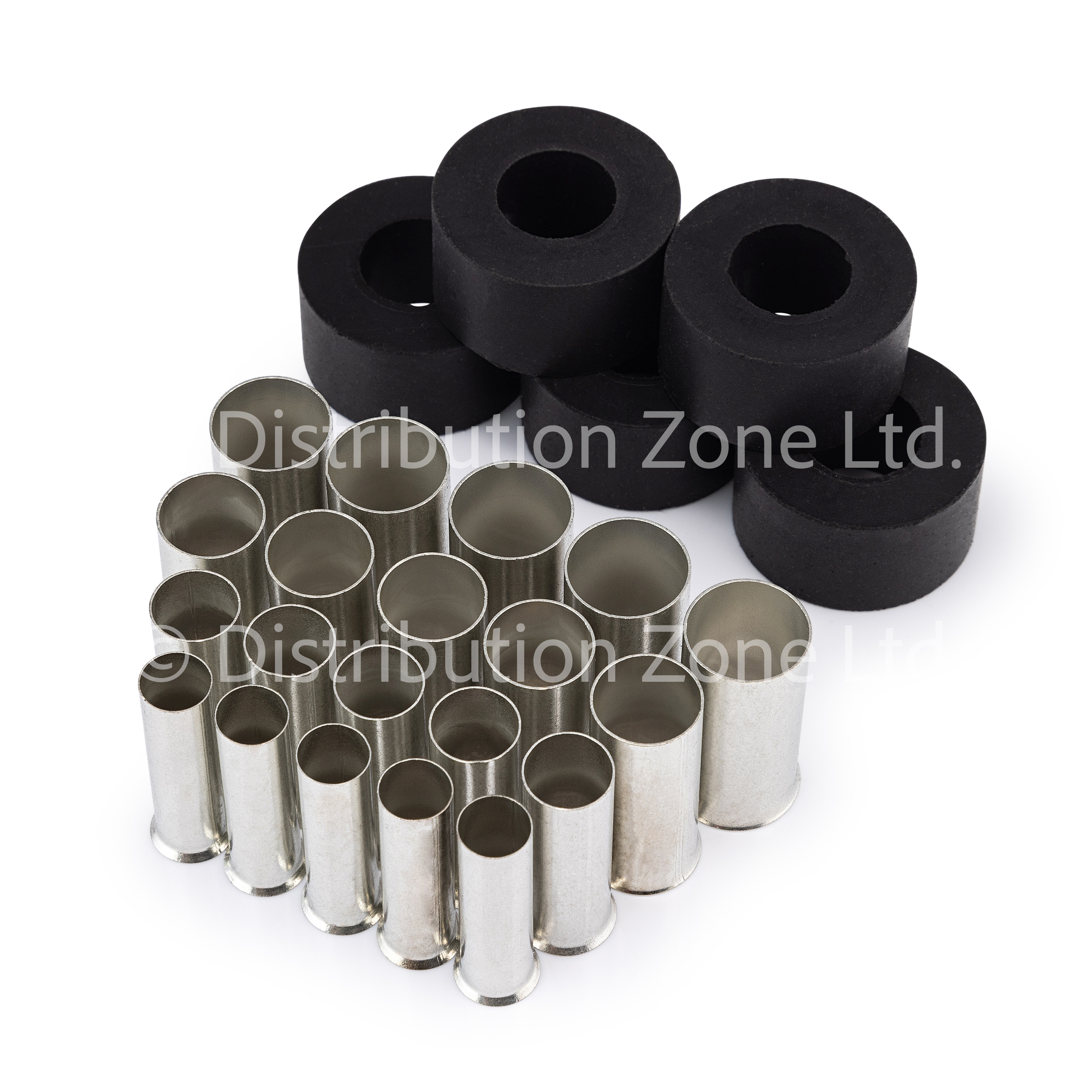

The Powersafe reduction kit comes with:
- Set Screw 95mm² Reduction Sleeve (R95)
- Set Screw 70mm² Reduction Sleeve (R70)
- Set Screw 50mm² Reduction Sleeve (R50)
- Set Screw 35mm² Reduction Sleeve (R35)
- M40S Bush
- M40SS Bush
